1. Product Basics and Microstructural Layout
1.1 Make-up and Crystallographic Security of Alumina

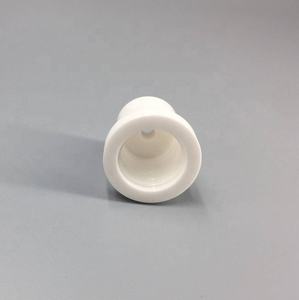

(Alumina Ceramic Nozzles)
Alumina (Al Two O FIVE), especially in its alpha phase, is a totally oxidized ceramic with a corundum-type hexagonal close-packed framework, supplying phenomenal thermal security, chemical inertness, and mechanical strength at raised temperatures.
High-purity alumina (normally 95– 99.9% Al ₂ O FIVE) is chosen for nozzle applications because of its marginal pollutant material, which decreases grain boundary weakening and enhances resistance to thermal and chemical degradation.
The microstructure, including fine, equiaxed grains, is engineered during sintering to reduce porosity and take full advantage of density, straight affecting the nozzle’s erosion resistance and structural honesty under high-velocity liquid flow.
Additives such as MgO are typically presented in trace total up to inhibit uncommon grain growth throughout sintering, guaranteeing an uniform microstructure that supports lasting dependability.
1.2 Mechanical and Thermal Properties Relevant to Nozzle Efficiency
Alumina ceramics show a Vickers solidity going beyond 1800 HV, making them very immune to unpleasant wear from particulate-laden liquids, an essential quality in applications such as sandblasting and unpleasant waterjet cutting.
With a flexural stamina of 300– 500 MPa and a compressive strength over 2 Grade point average, alumina nozzles preserve dimensional stability under high-pressure procedure, typically varying from 100 to 400 MPa in commercial systems.
Thermally, alumina preserves its mechanical residential or commercial properties as much as 1600 ° C, with a reduced thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) that provides outstanding resistance to thermal shock– essential when revealed to fast temperature changes throughout start-up or shutdown cycles.
Its thermal conductivity (~ 30 W/m · K) is sufficient to dissipate local warmth without inducing thermal gradients that can bring about splitting, stabilizing insulation and warm monitoring requirements.
2. Production Processes and Geometric Precision
2.1 Shaping and Sintering Strategies for Nozzle Manufacture
The production of alumina ceramic nozzles starts with high-purity alumina powder, which is processed into a green body using methods such as cold isostatic pushing (CIP), injection molding, or extrusion, depending on the desired geometry and set dimension.
( Alumina Ceramic Nozzles)
Cold isostatic pushing applies uniform pressure from all directions, producing a homogeneous thickness circulation important for minimizing defects during sintering.
Injection molding is utilized for complicated nozzle shapes with interior tapers and great orifices, permitting high dimensional precision and reproducibility in mass production.
After forming, the eco-friendly compacts undergo a two-stage thermal treatment: debinding to get rid of organic binders and sintering at temperature levels in between 1500 ° C and 1650 ° C to accomplish near-theoretical thickness through solid-state diffusion.
Precise control of sintering atmosphere and heating/cooling rates is necessary to stop bending, fracturing, or grain coarsening that can endanger nozzle efficiency.
2.2 Machining, Sprucing Up, and Quality Assurance
Post-sintering, alumina nozzles commonly call for accuracy machining to achieve tight tolerances, specifically in the orifice region where circulation characteristics are most sensitive to surface finish and geometry.
Ruby grinding and lapping are made use of to refine interior and external surface areas, achieving surface area roughness worths below 0.1 µm, which lowers circulation resistance and protects against fragment buildup.
The orifice, normally varying from 0.3 to 3.0 mm in diameter, should be free of micro-cracks and chamfers to make certain laminar flow and regular spray patterns.
Non-destructive testing methods such as optical microscopy, X-ray examination, and stress biking examinations are used to confirm structural honesty and performance uniformity prior to deployment.
Custom geometries, including convergent-divergent (de Laval) profiles for supersonic circulation or multi-hole selections for fan spray patterns, are increasingly fabricated using advanced tooling and computer-aided layout (CAD)-driven production.
3. Useful Advantages Over Alternate Nozzle Products
3.1 Superior Disintegration and Deterioration Resistance
Contrasted to metallic (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina shows far better resistance to unpleasant wear, particularly in settings including silica sand, garnet, or other tough abrasives utilized in surface prep work and cutting.
Steel nozzles weaken rapidly due to micro-fracturing and plastic contortion, requiring frequent replacement, whereas alumina nozzles can last 3– 5 times longer, significantly reducing downtime and operational costs.
Furthermore, alumina is inert to many acids, antacid, and solvents, making it ideal for chemical spraying, etching, and cleansing processes where metallic elements would certainly wear away or pollute the fluid.
This chemical stability is particularly important in semiconductor production, pharmaceutical handling, and food-grade applications needing high pureness.
3.2 Thermal and Electrical Insulation Quality
Alumina’s high electric resistivity (> 10 ¹⁴ Ω · cm) makes it optimal for usage in electrostatic spray coating systems, where it prevents cost leak and guarantees uniform paint atomization.
Its thermal insulation capacity permits secure operation in high-temperature splashing settings, such as fire splashing or thermal cleansing, without warmth transfer to surrounding elements.
Unlike metals, alumina does not militarize unwanted chain reaction in reactive fluid streams, preserving the honesty of sensitive solutions.
4. Industrial Applications and Technical Impact
4.1 Functions in Abrasive Jet Machining and Surface Area Treatment
Alumina ceramic nozzles are essential in abrasive blasting systems for corrosion removal, paint stripping, and surface texturing in automotive, aerospace, and building and construction sectors.
Their capacity to preserve a regular orifice diameter over extended usage guarantees consistent unpleasant speed and effect angle, directly influencing surface area coating high quality and process repeatability.
In rough waterjet cutting, alumina focusing tubes lead the high-pressure water-abrasive mix, holding up against abrasive pressures that would swiftly break down softer materials.
4.2 Use in Additive Manufacturing, Spray Layer, and Fluid Control
In thermal spray systems, such as plasma and fire spraying, alumina nozzles straight high-temperature gas circulations and molten fragments onto substratums, taking advantage of their thermal shock resistance and dimensional stability.
They are likewise utilized in precision spray nozzles for farming chemicals, inkjet systems, and fuel atomization, where wear resistance guarantees long-term dosing accuracy.
In 3D printing, especially in binder jetting and product extrusion, alumina nozzles deliver great powders or viscous pastes with marginal blocking or wear.
Arising applications consist of microfluidic systems and lab-on-a-chip tools, where miniaturized alumina parts use toughness and biocompatibility.
In summary, alumina ceramic nozzles represent an essential intersection of materials scientific research and commercial design.
Their exceptional combination of solidity, thermal stability, and chemical resistance enables reliable performance in several of one of the most requiring liquid handling settings.
As industrial procedures press toward greater pressures, finer resistances, and longer service intervals, alumina porcelains continue to establish the standard for resilient, high-precision flow control components.
