1. The Science and Structure of Alumina Porcelain Products
1.1 Crystallography and Compositional Variants of Aluminum Oxide

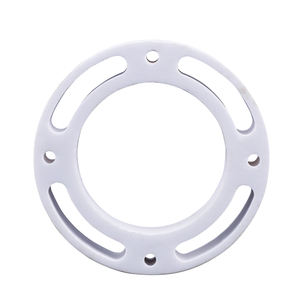

(Alumina Ceramics Rings)
Alumina ceramic rings are manufactured from aluminum oxide (Al two O ₃), a compound renowned for its phenomenal balance of mechanical toughness, thermal stability, and electric insulation.
The most thermodynamically steady and industrially appropriate stage of alumina is the alpha (α) stage, which crystallizes in a hexagonal close-packed (HCP) framework belonging to the corundum household.
In this setup, oxygen ions develop a thick latticework with aluminum ions inhabiting two-thirds of the octahedral interstitial sites, resulting in an extremely secure and durable atomic structure.
While pure alumina is in theory 100% Al Two O FOUR, industrial-grade materials typically include little percentages of ingredients such as silica (SiO TWO), magnesia (MgO), or yttria (Y ₂ O ₃) to control grain development throughout sintering and boost densification.
Alumina ceramics are classified by pureness levels: 96%, 99%, and 99.8% Al Two O two are common, with higher pureness correlating to boosted mechanical homes, thermal conductivity, and chemical resistance.
The microstructure– particularly grain dimension, porosity, and phase circulation– plays a critical function in identifying the final efficiency of alumina rings in service settings.
1.2 Key Physical and Mechanical Residence
Alumina ceramic rings show a collection of residential properties that make them vital sought after commercial settings.
They possess high compressive strength (as much as 3000 MPa), flexural stamina (typically 350– 500 MPa), and outstanding hardness (1500– 2000 HV), making it possible for resistance to use, abrasion, and deformation under load.
Their reduced coefficient of thermal expansion (approximately 7– 8 × 10 ⁻⁶/ K) guarantees dimensional stability across vast temperature level varieties, reducing thermal anxiety and breaking during thermal cycling.
Thermal conductivity varieties from 20 to 30 W/m · K, depending on pureness, enabling moderate warmth dissipation– sufficient for many high-temperature applications without the need for active air conditioning.
( Alumina Ceramics Ring)
Electrically, alumina is an impressive insulator with a volume resistivity going beyond 10 ¹⁴ Ω · cm and a dielectric toughness of around 10– 15 kV/mm, making it suitable for high-voltage insulation parts.
In addition, alumina shows outstanding resistance to chemical assault from acids, alkalis, and molten metals, although it is susceptible to strike by strong alkalis and hydrofluoric acid at elevated temperature levels.
2. Production and Accuracy Engineering of Alumina Rings
2.1 Powder Handling and Shaping Strategies
The production of high-performance alumina ceramic rings begins with the choice and preparation of high-purity alumina powder.
Powders are generally synthesized via calcination of aluminum hydroxide or through advanced approaches like sol-gel handling to accomplish fine bit size and slim dimension circulation.
To develop the ring geometry, several forming methods are employed, consisting of:
Uniaxial pressing: where powder is compacted in a die under high stress to form a “environment-friendly” ring.
Isostatic pushing: using consistent stress from all instructions utilizing a fluid tool, leading to higher density and more uniform microstructure, particularly for facility or large rings.
Extrusion: appropriate for lengthy cylindrical types that are later cut into rings, often utilized for lower-precision applications.
Shot molding: utilized for complex geometries and tight resistances, where alumina powder is blended with a polymer binder and injected right into a mold.
Each method influences the last density, grain placement, and issue circulation, demanding mindful procedure option based on application requirements.
2.2 Sintering and Microstructural Growth
After forming, the environment-friendly rings undergo high-temperature sintering, generally between 1500 ° C and 1700 ° C in air or controlled atmospheres.
Throughout sintering, diffusion systems drive fragment coalescence, pore elimination, and grain development, causing a fully thick ceramic body.
The price of heating, holding time, and cooling account are precisely regulated to avoid fracturing, bending, or overstated grain growth.
Additives such as MgO are typically presented to prevent grain limit wheelchair, leading to a fine-grained microstructure that enhances mechanical stamina and dependability.
Post-sintering, alumina rings might go through grinding and splashing to accomplish limited dimensional resistances ( ± 0.01 mm) and ultra-smooth surface coatings (Ra < 0.1 µm), critical for securing, birthing, and electric insulation applications.
3. Practical Performance and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are extensively utilized in mechanical systems due to their wear resistance and dimensional stability.
Secret applications consist of:
Sealing rings in pumps and shutoffs, where they stand up to erosion from rough slurries and destructive fluids in chemical processing and oil & gas industries.
Bearing components in high-speed or harsh settings where metal bearings would certainly degrade or require regular lubrication.
Guide rings and bushings in automation equipment, offering reduced friction and lengthy life span without the requirement for oiling.
Put on rings in compressors and generators, minimizing clearance in between revolving and stationary parts under high-pressure conditions.
Their capacity to keep performance in dry or chemically aggressive environments makes them superior to many metallic and polymer options.
3.2 Thermal and Electric Insulation Duties
In high-temperature and high-voltage systems, alumina rings function as essential insulating components.
They are used as:
Insulators in burner and heating system elements, where they sustain resistive cords while enduring temperature levels above 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, avoiding electric arcing while maintaining hermetic seals.
Spacers and support rings in power electronics and switchgear, separating conductive parts in transformers, circuit breakers, and busbar systems.
Dielectric rings in RF and microwave devices, where their reduced dielectric loss and high break down stamina make sure signal integrity.
The combination of high dielectric strength and thermal security permits alumina rings to function accurately in settings where organic insulators would weaken.
4. Product Developments and Future Overview
4.1 Composite and Doped Alumina Systems
To additionally enhance performance, researchers and makers are establishing advanced alumina-based composites.
Instances include:
Alumina-zirconia (Al Two O THREE-ZrO TWO) compounds, which show boosted fracture sturdiness via makeover toughening mechanisms.
Alumina-silicon carbide (Al two O SIX-SiC) nanocomposites, where nano-sized SiC particles enhance hardness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can modify grain boundary chemistry to improve high-temperature stamina and oxidation resistance.
These hybrid materials extend the functional envelope of alumina rings right into more extreme conditions, such as high-stress dynamic loading or rapid thermal cycling.
4.2 Emerging Patterns and Technical Assimilation
The future of alumina ceramic rings depends on wise combination and precision production.
Trends include:
Additive production (3D printing) of alumina parts, allowing intricate interior geometries and customized ring layouts previously unachievable with typical techniques.
Useful grading, where make-up or microstructure varies throughout the ring to optimize performance in different areas (e.g., wear-resistant external layer with thermally conductive core).
In-situ surveillance through embedded sensing units in ceramic rings for anticipating upkeep in industrial machinery.
Raised usage in renewable energy systems, such as high-temperature fuel cells and focused solar power plants, where material integrity under thermal and chemical anxiety is extremely important.
As industries demand higher effectiveness, longer life-spans, and minimized maintenance, alumina ceramic rings will continue to play an essential function in enabling next-generation design remedies.
