1. The Product Foundation and Crystallographic Identity of Alumina Ceramics
1.1 Atomic Design and Phase Stability

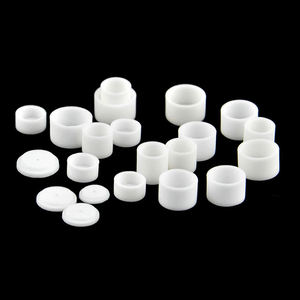

(Alumina Ceramics)
Alumina porcelains, primarily made up of light weight aluminum oxide (Al two O ₃), represent one of one of the most commonly used courses of advanced porcelains because of their remarkable equilibrium of mechanical strength, thermal resilience, and chemical inertness.
At the atomic level, the performance of alumina is rooted in its crystalline structure, with the thermodynamically stable alpha stage (α-Al ₂ O FIVE) being the leading form made use of in design applications.
This phase adopts a rhombohedral crystal system within the hexagonal close-packed (HCP) latticework, where oxygen anions develop a dense setup and aluminum cations inhabit two-thirds of the octahedral interstitial sites.
The resulting structure is extremely secure, contributing to alumina’s high melting factor of around 2072 ° C and its resistance to decomposition under extreme thermal and chemical conditions.
While transitional alumina phases such as gamma (γ), delta (δ), and theta (θ) exist at lower temperatures and exhibit higher surface, they are metastable and irreversibly transform right into the alpha stage upon heating above 1100 ° C, making α-Al two O ₃ the unique phase for high-performance architectural and functional elements.
1.2 Compositional Grading and Microstructural Engineering
The homes of alumina porcelains are not fixed but can be tailored via managed variations in pureness, grain dimension, and the enhancement of sintering aids.
High-purity alumina (≥ 99.5% Al Two O SIX) is utilized in applications requiring optimum mechanical toughness, electric insulation, and resistance to ion diffusion, such as in semiconductor processing and high-voltage insulators.
Lower-purity qualities (ranging from 85% to 99% Al Two O FIVE) often include secondary stages like mullite (3Al ₂ O SIX · 2SiO ₂) or lustrous silicates, which improve sinterability and thermal shock resistance at the cost of solidity and dielectric efficiency.
A vital consider efficiency optimization is grain dimension control; fine-grained microstructures, attained via the addition of magnesium oxide (MgO) as a grain development prevention, dramatically improve crack strength and flexural stamina by restricting split proliferation.
Porosity, also at reduced degrees, has a destructive effect on mechanical stability, and totally dense alumina porcelains are normally produced via pressure-assisted sintering strategies such as warm pressing or hot isostatic pushing (HIP).
The interplay between composition, microstructure, and processing specifies the useful envelope within which alumina ceramics operate, allowing their use throughout a huge range of industrial and technological domains.
( Alumina Ceramics)
2. Mechanical and Thermal Performance in Demanding Environments
2.1 Toughness, Firmness, and Put On Resistance
Alumina ceramics show a special combination of high solidity and moderate fracture strength, making them suitable for applications entailing rough wear, erosion, and impact.
With a Vickers solidity commonly varying from 15 to 20 Grade point average, alumina rankings among the hardest design materials, exceeded only by ruby, cubic boron nitride, and certain carbides.
This extreme hardness translates right into phenomenal resistance to scratching, grinding, and fragment impingement, which is manipulated in elements such as sandblasting nozzles, cutting tools, pump seals, and wear-resistant linings.
Flexural strength values for dense alumina range from 300 to 500 MPa, depending upon purity and microstructure, while compressive strength can surpass 2 GPa, permitting alumina parts to stand up to high mechanical tons without deformation.
In spite of its brittleness– an usual quality amongst ceramics– alumina’s efficiency can be optimized through geometric layout, stress-relief attributes, and composite reinforcement techniques, such as the unification of zirconia fragments to generate transformation toughening.
2.2 Thermal Habits and Dimensional Stability
The thermal residential or commercial properties of alumina porcelains are central to their usage in high-temperature and thermally cycled environments.
With a thermal conductivity of 20– 30 W/m · K– greater than many polymers and comparable to some metals– alumina effectively dissipates warm, making it ideal for warmth sinks, protecting substratums, and heater components.
Its low coefficient of thermal growth (~ 8 × 10 ⁻⁶/ K) guarantees very little dimensional modification throughout heating and cooling, lowering the threat of thermal shock fracturing.
This security is especially valuable in applications such as thermocouple security tubes, spark plug insulators, and semiconductor wafer managing systems, where accurate dimensional control is essential.
Alumina preserves its mechanical integrity up to temperature levels of 1600– 1700 ° C in air, beyond which creep and grain boundary moving may initiate, depending on purity and microstructure.
In vacuum or inert environments, its performance extends even additionally, making it a recommended material for space-based instrumentation and high-energy physics experiments.
3. Electrical and Dielectric Characteristics for Advanced Technologies
3.1 Insulation and High-Voltage Applications
Among the most substantial useful characteristics of alumina ceramics is their impressive electrical insulation ability.
With a quantity resistivity surpassing 10 ¹⁴ Ω · cm at space temperature level and a dielectric stamina of 10– 15 kV/mm, alumina acts as a reliable insulator in high-voltage systems, consisting of power transmission equipment, switchgear, and electronic product packaging.
Its dielectric consistent (εᵣ ≈ 9– 10 at 1 MHz) is relatively stable throughout a large regularity variety, making it suitable for usage in capacitors, RF parts, and microwave substrates.
Low dielectric loss (tan δ < 0.0005) ensures marginal energy dissipation in alternating existing (A/C) applications, enhancing system effectiveness and reducing warmth generation.
In published circuit card (PCBs) and crossbreed microelectronics, alumina substrates supply mechanical assistance and electrical isolation for conductive traces, making it possible for high-density circuit assimilation in harsh atmospheres.
3.2 Efficiency in Extreme and Sensitive Environments
Alumina ceramics are distinctively matched for usage in vacuum cleaner, cryogenic, and radiation-intensive atmospheres because of their low outgassing rates and resistance to ionizing radiation.
In bit accelerators and blend reactors, alumina insulators are used to separate high-voltage electrodes and diagnostic sensing units without presenting pollutants or breaking down under extended radiation exposure.
Their non-magnetic nature additionally makes them ideal for applications including solid magnetic fields, such as magnetic resonance imaging (MRI) systems and superconducting magnets.
Additionally, alumina’s biocompatibility and chemical inertness have actually led to its fostering in clinical gadgets, consisting of dental implants and orthopedic parts, where long-term stability and non-reactivity are paramount.
4. Industrial, Technological, and Emerging Applications
4.1 Duty in Industrial Machinery and Chemical Processing
Alumina porcelains are thoroughly utilized in commercial tools where resistance to wear, corrosion, and heats is necessary.
Elements such as pump seals, shutoff seats, nozzles, and grinding media are generally made from alumina because of its ability to hold up against abrasive slurries, hostile chemicals, and elevated temperature levels.
In chemical handling plants, alumina linings protect reactors and pipelines from acid and alkali strike, extending tools life and lowering upkeep prices.
Its inertness additionally makes it suitable for use in semiconductor manufacture, where contamination control is crucial; alumina chambers and wafer boats are exposed to plasma etching and high-purity gas settings without seeping pollutants.
4.2 Combination right into Advanced Manufacturing and Future Technologies
Past traditional applications, alumina porcelains are playing an increasingly important function in arising innovations.
In additive manufacturing, alumina powders are utilized in binder jetting and stereolithography (SHANTY TOWN) processes to produce complicated, high-temperature-resistant components for aerospace and energy systems.
Nanostructured alumina movies are being checked out for catalytic assistances, sensing units, and anti-reflective coverings due to their high surface area and tunable surface chemistry.
Furthermore, alumina-based composites, such as Al Two O ₃-ZrO ₂ or Al Two O SIX-SiC, are being developed to get rid of the fundamental brittleness of monolithic alumina, offering enhanced toughness and thermal shock resistance for next-generation architectural products.
As sectors remain to press the boundaries of efficiency and dependability, alumina ceramics stay at the leading edge of material innovation, bridging the gap in between architectural effectiveness and useful versatility.
In summary, alumina porcelains are not simply a course of refractory products however a cornerstone of contemporary engineering, allowing technological progress throughout energy, electronics, medical care, and commercial automation.
Their special mix of buildings– rooted in atomic structure and fine-tuned through advanced handling– ensures their continued significance in both developed and emerging applications.
As product science evolves, alumina will unquestionably remain a crucial enabler of high-performance systems operating beside physical and ecological extremes.
