Intro to Aluminum Nitride Ceramics
Aluminum nitride (AlN) is a high-performance ceramic material that has acquired prevalent acknowledgment for its exceptional thermal conductivity, electric insulation, and mechanical security at elevated temperatures. With a hexagonal wurtzite crystal framework, AlN displays an unique mix of residential or commercial properties that make it one of the most excellent substratum product for applications in electronic devices, optoelectronics, power modules, and high-temperature settings. Its ability to successfully dissipate warm while keeping superb dielectric toughness positions AlN as a premium choice to typical ceramic substratums such as alumina and beryllium oxide. This short article explores the essential attributes of light weight aluminum nitride ceramics, delves into manufacture techniques, and highlights its critical functions throughout innovative technical domains.

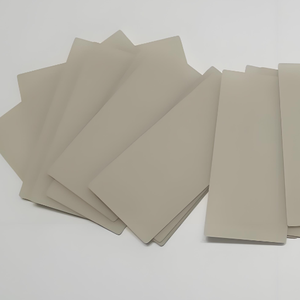

(Aluminum Nitride Ceramics)
Crystal Structure and Basic Properties
The efficiency of light weight aluminum nitride as a substrate product is mostly determined by its crystalline structure and inherent physical residential or commercial properties. AlN adopts a wurtzite-type lattice made up of alternating light weight aluminum and nitrogen atoms, which contributes to its high thermal conductivity– typically exceeding 180 W/(m · K), with some high-purity examples attaining over 320 W/(m · K). This worth considerably goes beyond those of various other commonly made use of ceramic materials, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
In addition to its thermal performance, AlN has a wide bandgap of around 6.2 eV, causing excellent electrical insulation residential or commercial properties even at heats. It additionally shows reduced thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which very closely matches that of silicon and gallium arsenide, making it an optimal match for semiconductor device product packaging. Moreover, AlN shows high chemical inertness and resistance to molten metals, boosting its suitability for extreme environments. These mixed qualities develop AlN as a top prospect for high-power digital substratums and thermally took care of systems.
Construction and Sintering Technologies
Producing top quality aluminum nitride porcelains calls for specific powder synthesis and sintering techniques to attain dense microstructures with very little contaminations. Because of its covalent bonding nature, AlN does not easily densify with standard pressureless sintering. For that reason, sintering help such as yttrium oxide (Y TWO O ₃), calcium oxide (CaO), or rare earth elements are generally added to advertise liquid-phase sintering and enhance grain border diffusion.
The fabrication procedure usually begins with the carbothermal decrease of light weight aluminum oxide in a nitrogen environment to synthesize AlN powders. These powders are then milled, shaped through techniques like tape casting or shot molding, and sintered at temperature levels in between 1700 ° C and 1900 ° C under a nitrogen-rich atmosphere. Hot pressing or trigger plasma sintering (SPS) can additionally enhance density and thermal conductivity by minimizing porosity and advertising grain alignment. Advanced additive manufacturing strategies are also being explored to fabricate complex-shaped AlN parts with tailored thermal monitoring capabilities.
Application in Digital Packaging and Power Modules
Among the most noticeable uses of light weight aluminum nitride ceramics remains in electronic product packaging, especially for high-power tools such as shielded gate bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power densities increase in modern electronics, effective heat dissipation becomes essential to make certain integrity and durability. AlN substrates give an ideal solution by incorporating high thermal conductivity with superb electric isolation, protecting against short circuits and thermal runaway problems.
Additionally, AlN-based direct bonded copper (DBC) and active steel brazed (AMB) substratums are progressively used in power component designs for electrical cars, renewable energy inverters, and commercial motor drives. Compared to conventional alumina or silicon nitride substrates, AlN uses quicker heat transfer and much better compatibility with silicon chip coefficients of thermal development, consequently lowering mechanical tension and enhancing total system performance. Ongoing study intends to improve the bonding stamina and metallization methods on AlN surfaces to further broaden its application range.
Use in Optoelectronic and High-Temperature Gadget
Past electronic product packaging, light weight aluminum nitride porcelains play an essential duty in optoelectronic and high-temperature applications due to their openness to ultraviolet (UV) radiation and thermal security. AlN is extensively made use of as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, specifically in applications requiring sanitation, noticing, and optical communication. Its vast bandgap and low absorption coefficient in the UV variety make it an excellent candidate for sustaining aluminum gallium nitride (AlGaN)-based heterostructures.
In addition, AlN’s ability to function dependably at temperature levels exceeding 1000 ° C makes it ideal for use in sensors, thermoelectric generators, and components subjected to severe thermal lots. In aerospace and defense markets, AlN-based sensing unit bundles are used in jet engine surveillance systems and high-temperature control systems where traditional materials would fall short. Continuous innovations in thin-film deposition and epitaxial development techniques are expanding the possibility of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Environmental Security and Long-Term Reliability
An essential consideration for any substrate material is its long-term integrity under operational stress and anxieties. Aluminum nitride shows remarkable environmental security contrasted to lots of other porcelains. It is highly resistant to deterioration from acids, antacid, and molten metals, making sure sturdiness in hostile chemical environments. However, AlN is susceptible to hydrolysis when subjected to dampness at elevated temperature levels, which can weaken its surface area and lower thermal performance.
To mitigate this issue, safety coverings such as silicon nitride (Si six N FOUR), light weight aluminum oxide, or polymer-based encapsulation layers are frequently put on improve wetness resistance. Furthermore, careful sealing and packaging methods are carried out during gadget assembly to maintain the integrity of AlN substratums throughout their service life. As environmental policies end up being extra strict, the safe nature of AlN likewise positions it as a favored option to beryllium oxide, which postures wellness threats during processing and disposal.
Conclusion
Aluminum nitride porcelains represent a course of innovative materials uniquely suited to resolve the growing demands for efficient thermal management and electric insulation in high-performance digital and optoelectronic systems. Their outstanding thermal conductivity, chemical stability, and compatibility with semiconductor innovations make them one of the most suitable substrate product for a vast array of applications– from automotive power modules to deep UV LEDs and high-temperature sensors. As fabrication technologies remain to develop and affordable production methods grow, the fostering of AlN substratums is expected to increase considerably, driving advancement in next-generation digital and photonic tools.
