1. Product Features and Structural Integrity
1.1 Intrinsic Features of Silicon Carbide

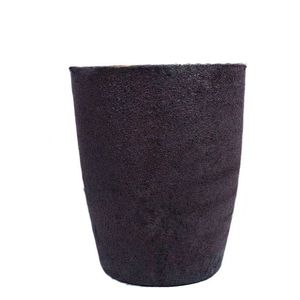

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms set up in a tetrahedral latticework framework, mainly existing in over 250 polytypic kinds, with 6H, 4H, and 3C being one of the most technologically appropriate.
Its strong directional bonding imparts extraordinary firmness (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m Ā· K )for pure solitary crystals), and outstanding chemical inertness, making it among one of the most durable products for severe environments.
The wide bandgap (2.9– 3.3 eV) ensures excellent electrical insulation at space temperature level and high resistance to radiation damages, while its reduced thermal expansion coefficient (~ 4.0 Ć 10 ā»ā¶/ K) contributes to premium thermal shock resistance.
These innate residential or commercial properties are protected even at temperatures exceeding 1600 Ā° C, permitting SiC to preserve structural honesty under extended direct exposure to thaw steels, slags, and responsive gases.
Unlike oxide porcelains such as alumina, SiC does not react easily with carbon or kind low-melting eutectics in minimizing atmospheres, a vital benefit in metallurgical and semiconductor processing.
When fabricated right into crucibles– vessels created to include and warmth materials– SiC outshines conventional materials like quartz, graphite, and alumina in both life-span and procedure reliability.
1.2 Microstructure and Mechanical Stability
The performance of SiC crucibles is carefully connected to their microstructure, which depends on the production approach and sintering ingredients made use of.
Refractory-grade crucibles are normally produced using response bonding, where permeable carbon preforms are penetrated with liquified silicon, creating Ī²-SiC via the reaction Si(l) + C(s) ā SiC(s).
This procedure generates a composite framework of primary SiC with recurring totally free silicon (5– 10%), which enhances thermal conductivity yet may restrict use above 1414 Ā° C(the melting point of silicon).
Conversely, completely sintered SiC crucibles are made with solid-state or liquid-phase sintering using boron and carbon or alumina-yttria additives, attaining near-theoretical thickness and greater pureness.
These display superior creep resistance and oxidation stability yet are much more costly and difficult to produce in large sizes.

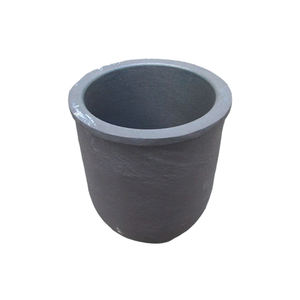

( Silicon Carbide Crucibles)
The fine-grained, interlacing microstructure of sintered SiC gives superb resistance to thermal exhaustion and mechanical erosion, vital when handling liquified silicon, germanium, or III-V substances in crystal growth processes.
Grain border design, including the control of secondary phases and porosity, plays an essential function in identifying long-term durability under cyclic heating and aggressive chemical environments.
2. Thermal Efficiency and Environmental Resistance
2.1 Thermal Conductivity and Warm Circulation
One of the defining benefits of SiC crucibles is their high thermal conductivity, which enables fast and consistent warm transfer throughout high-temperature processing.
In contrast to low-conductivity materials like fused silica (1– 2 W/(m Ā· K)), SiC efficiently distributes thermal energy throughout the crucible wall, minimizing localized locations and thermal gradients.
This uniformity is crucial in procedures such as directional solidification of multicrystalline silicon for photovoltaics, where temperature level homogeneity straight impacts crystal high quality and problem thickness.
The combination of high conductivity and reduced thermal growth leads to a remarkably high thermal shock specification (R = k(1 ā Ī½)Ī±/ Ļ), making SiC crucibles resistant to fracturing during fast home heating or cooling down cycles.
This allows for faster heater ramp rates, boosted throughput, and decreased downtime due to crucible failing.
In addition, the material’s ability to stand up to repeated thermal biking without significant deterioration makes it ideal for batch handling in industrial heaters operating over 1500 Ā° C.
2.2 Oxidation and Chemical Compatibility
At elevated temperatures in air, SiC undertakes easy oxidation, forming a protective layer of amorphous silica (SiO TWO) on its surface: SiC + 3/2 O TWO ā SiO TWO + CO.
This glazed layer densifies at high temperatures, functioning as a diffusion barrier that slows further oxidation and protects the underlying ceramic framework.
Nonetheless, in lowering ambiences or vacuum conditions– typical in semiconductor and steel refining– oxidation is reduced, and SiC continues to be chemically steady versus molten silicon, light weight aluminum, and several slags.
It withstands dissolution and reaction with molten silicon as much as 1410 Ā° C, although prolonged exposure can result in minor carbon pickup or user interface roughening.
Crucially, SiC does not present metallic contaminations right into sensitive melts, an essential requirement for electronic-grade silicon production where contamination by Fe, Cu, or Cr must be kept below ppb degrees.
Nevertheless, care must be taken when processing alkaline planet steels or highly responsive oxides, as some can wear away SiC at severe temperatures.
3. Manufacturing Processes and Quality Assurance
3.1 Manufacture Techniques and Dimensional Control
The production of SiC crucibles involves shaping, drying out, and high-temperature sintering or infiltration, with approaches picked based upon required purity, dimension, and application.
Typical developing strategies consist of isostatic pressing, extrusion, and slip casting, each using various degrees of dimensional accuracy and microstructural harmony.
For big crucibles made use of in photovoltaic or pv ingot casting, isostatic pressing guarantees regular wall density and density, decreasing the risk of uneven thermal development and failure.
Reaction-bonded SiC (RBSC) crucibles are economical and widely used in foundries and solar markets, though recurring silicon limitations maximum solution temperature level.
Sintered SiC (SSiC) variations, while more costly, deal superior purity, toughness, and resistance to chemical strike, making them ideal for high-value applications like GaAs or InP crystal growth.
Accuracy machining after sintering might be required to attain tight resistances, particularly for crucibles made use of in vertical gradient freeze (VGF) or Czochralski (CZ) systems.
Surface area completing is essential to lessen nucleation websites for flaws and ensure smooth melt flow during casting.
3.2 Quality Assurance and Performance Validation
Strenuous quality assurance is vital to guarantee integrity and longevity of SiC crucibles under requiring functional conditions.
Non-destructive analysis methods such as ultrasonic testing and X-ray tomography are used to identify internal fractures, gaps, or thickness variations.
Chemical analysis by means of XRF or ICP-MS confirms reduced degrees of metallic pollutants, while thermal conductivity and flexural strength are measured to verify product uniformity.
Crucibles are typically subjected to simulated thermal biking tests prior to delivery to determine possible failing settings.
Batch traceability and qualification are common in semiconductor and aerospace supply chains, where element failing can cause pricey manufacturing losses.
4. Applications and Technological Effect
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play an essential function in the production of high-purity silicon for both microelectronics and solar cells.
In directional solidification heaters for multicrystalline solar ingots, huge SiC crucibles serve as the primary container for liquified silicon, withstanding temperature levels above 1500 Ā° C for multiple cycles.
Their chemical inertness stops contamination, while their thermal stability makes certain uniform solidification fronts, resulting in higher-quality wafers with fewer dislocations and grain borders.
Some manufacturers coat the internal surface area with silicon nitride or silica to better minimize bond and assist in ingot launch after cooling.
In research-scale Czochralski development of compound semiconductors, smaller sized SiC crucibles are used to hold melts of GaAs, InSb, or CdTe, where minimal reactivity and dimensional security are extremely important.
4.2 Metallurgy, Factory, and Emerging Technologies
Beyond semiconductors, SiC crucibles are essential in metal refining, alloy prep work, and laboratory-scale melting operations including aluminum, copper, and precious metals.
Their resistance to thermal shock and disintegration makes them optimal for induction and resistance furnaces in foundries, where they outlast graphite and alumina choices by a number of cycles.
In additive manufacturing of responsive metals, SiC containers are utilized in vacuum cleaner induction melting to avoid crucible malfunction and contamination.
Arising applications consist of molten salt reactors and concentrated solar power systems, where SiC vessels might have high-temperature salts or fluid steels for thermal energy storage.
With recurring advances in sintering technology and finish engineering, SiC crucibles are positioned to support next-generation materials processing, enabling cleaner, more effective, and scalable industrial thermal systems.
In recap, silicon carbide crucibles stand for a vital allowing technology in high-temperature product synthesis, incorporating phenomenal thermal, mechanical, and chemical performance in a solitary crafted part.
Their widespread fostering across semiconductor, solar, and metallurgical markets underscores their role as a keystone of contemporary commercial porcelains.
