1. Material Structures and Synergistic Design
1.1 Innate Qualities of Constituent Phases

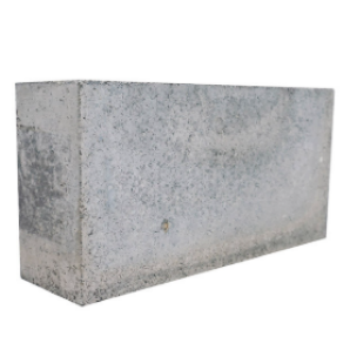

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si ₃ N FOUR) and silicon carbide (SiC) are both covalently bound, non-oxide porcelains renowned for their extraordinary efficiency in high-temperature, destructive, and mechanically requiring atmospheres.
Silicon nitride displays exceptional fracture toughness, thermal shock resistance, and creep stability due to its special microstructure composed of extended β-Si two N four grains that make it possible for fracture deflection and bridging mechanisms.
It keeps toughness as much as 1400 ° C and has a reasonably low thermal growth coefficient (~ 3.2 × 10 ⁻⁶/ K), lessening thermal tensions throughout quick temperature level adjustments.
In contrast, silicon carbide offers exceptional solidity, thermal conductivity (approximately 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it ideal for rough and radiative warmth dissipation applications.
Its vast bandgap (~ 3.3 eV for 4H-SiC) also gives outstanding electric insulation and radiation tolerance, helpful in nuclear and semiconductor contexts.
When combined into a composite, these products exhibit corresponding actions: Si six N ₄ enhances strength and damages resistance, while SiC improves thermal management and wear resistance.
The resulting hybrid ceramic accomplishes an equilibrium unattainable by either phase alone, forming a high-performance architectural material customized for extreme solution conditions.
1.2 Composite Architecture and Microstructural Design
The design of Si five N ₄– SiC composites involves specific control over stage distribution, grain morphology, and interfacial bonding to make the most of synergistic impacts.
Typically, SiC is introduced as fine particle reinforcement (ranging from submicron to 1 µm) within a Si six N four matrix, although functionally graded or layered styles are likewise discovered for specialized applications.
Throughout sintering– normally by means of gas-pressure sintering (GENERAL PRACTITIONER) or warm pushing– SiC fragments influence the nucleation and development kinetics of β-Si five N ₄ grains, often promoting finer and even more consistently oriented microstructures.
This improvement enhances mechanical homogeneity and reduces defect dimension, contributing to enhanced strength and reliability.
Interfacial compatibility in between the two stages is critical; since both are covalent ceramics with comparable crystallographic balance and thermal expansion habits, they form systematic or semi-coherent boundaries that resist debonding under lots.
Ingredients such as yttria (Y ₂ O FIVE) and alumina (Al two O ₃) are utilized as sintering help to advertise liquid-phase densification of Si ₃ N ₄ without endangering the stability of SiC.
Nevertheless, excessive secondary phases can break down high-temperature performance, so structure and handling have to be maximized to minimize glassy grain boundary movies.
2. Processing Methods and Densification Obstacles

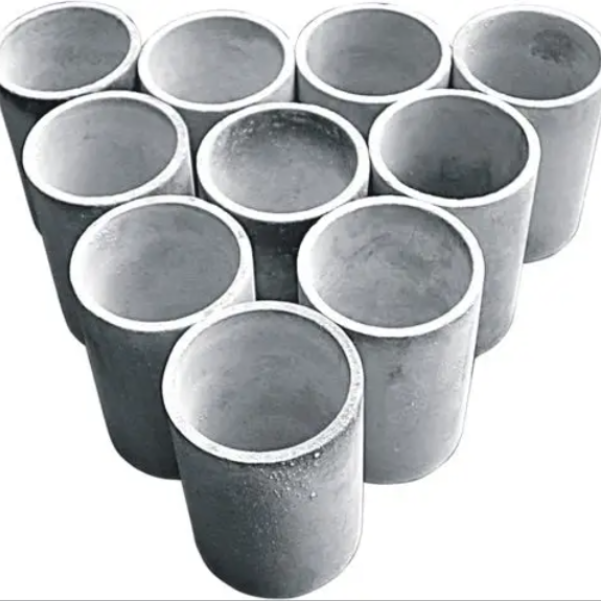

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Approaches
Premium Si Two N FOUR– SiC compounds begin with homogeneous blending of ultrafine, high-purity powders using wet sphere milling, attrition milling, or ultrasonic diffusion in natural or aqueous media.
Attaining uniform diffusion is essential to stop load of SiC, which can serve as tension concentrators and reduce fracture toughness.
Binders and dispersants are included in maintain suspensions for shaping strategies such as slip casting, tape casting, or injection molding, relying on the desired component geometry.
Eco-friendly bodies are then very carefully dried and debound to remove organics before sintering, a process calling for controlled home heating rates to avoid cracking or contorting.
For near-net-shape production, additive methods like binder jetting or stereolithography are arising, allowing complex geometries formerly unachievable with standard ceramic handling.
These methods require customized feedstocks with maximized rheology and environment-friendly strength, typically entailing polymer-derived ceramics or photosensitive materials loaded with composite powders.
2.2 Sintering Devices and Stage Security
Densification of Si Five N FOUR– SiC compounds is challenging because of the solid covalent bonding and limited self-diffusion of nitrogen and carbon at useful temperature levels.
Liquid-phase sintering using rare-earth or alkaline planet oxides (e.g., Y ₂ O FIVE, MgO) reduces the eutectic temperature level and improves mass transport via a transient silicate melt.
Under gas stress (normally 1– 10 MPa N TWO), this melt facilitates rearrangement, solution-precipitation, and final densification while reducing decomposition of Si five N ₄.
The presence of SiC influences thickness and wettability of the fluid stage, potentially modifying grain growth anisotropy and final appearance.
Post-sintering warmth treatments might be related to take shape recurring amorphous phases at grain boundaries, improving high-temperature mechanical residential properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are consistently used to verify phase pureness, absence of unfavorable second phases (e.g., Si two N ₂ O), and consistent microstructure.
3. Mechanical and Thermal Performance Under Tons
3.1 Stamina, Toughness, and Tiredness Resistance
Si Three N ₄– SiC composites show superior mechanical performance contrasted to monolithic porcelains, with flexural toughness going beyond 800 MPa and fracture durability worths getting to 7– 9 MPa · m ¹/ ².
The reinforcing effect of SiC fragments impedes misplacement movement and fracture propagation, while the extended Si four N ₄ grains continue to provide toughening with pull-out and bridging mechanisms.
This dual-toughening approach causes a product very immune to influence, thermal cycling, and mechanical tiredness– crucial for rotating elements and architectural elements in aerospace and power systems.
Creep resistance continues to be superb up to 1300 ° C, attributed to the security of the covalent network and lessened grain limit sliding when amorphous stages are lowered.
Firmness values typically range from 16 to 19 GPa, providing superb wear and disintegration resistance in abrasive environments such as sand-laden circulations or gliding get in touches with.
3.2 Thermal Administration and Environmental Resilience
The enhancement of SiC dramatically boosts the thermal conductivity of the composite, often increasing that of pure Si six N FOUR (which ranges from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending upon SiC web content and microstructure.
This enhanced warmth transfer capacity allows for extra reliable thermal monitoring in parts subjected to extreme local home heating, such as combustion linings or plasma-facing parts.
The composite keeps dimensional security under steep thermal gradients, withstanding spallation and splitting as a result of matched thermal growth and high thermal shock parameter (R-value).
Oxidation resistance is another key benefit; SiC forms a protective silica (SiO TWO) layer upon direct exposure to oxygen at raised temperature levels, which even more densifies and seals surface defects.
This passive layer shields both SiC and Si Three N ₄ (which additionally oxidizes to SiO ₂ and N TWO), making sure lasting resilience in air, steam, or combustion atmospheres.
4. Applications and Future Technological Trajectories
4.1 Aerospace, Energy, and Industrial Systems
Si Two N ₄– SiC compounds are significantly released in next-generation gas wind turbines, where they allow greater operating temperature levels, enhanced fuel effectiveness, and minimized cooling demands.
Components such as generator blades, combustor liners, and nozzle overview vanes take advantage of the product’s ability to hold up against thermal biking and mechanical loading without significant deterioration.
In nuclear reactors, especially high-temperature gas-cooled activators (HTGRs), these compounds act as fuel cladding or structural supports as a result of their neutron irradiation tolerance and fission product retention capacity.
In industrial settings, they are utilized in liquified steel handling, kiln furnishings, and wear-resistant nozzles and bearings, where standard metals would certainly fail prematurely.
Their lightweight nature (density ~ 3.2 g/cm SIX) additionally makes them attractive for aerospace propulsion and hypersonic vehicle elements subject to aerothermal home heating.
4.2 Advanced Manufacturing and Multifunctional Combination
Emerging study focuses on establishing functionally rated Si five N ₄– SiC structures, where make-up varies spatially to maximize thermal, mechanical, or electro-magnetic residential properties throughout a solitary component.
Hybrid systems incorporating CMC (ceramic matrix composite) designs with fiber reinforcement (e.g., SiC_f/ SiC– Si Four N FOUR) press the borders of damages resistance and strain-to-failure.
Additive manufacturing of these compounds enables topology-optimized heat exchangers, microreactors, and regenerative air conditioning networks with inner lattice structures unreachable through machining.
Moreover, their integral dielectric residential properties and thermal stability make them prospects for radar-transparent radomes and antenna home windows in high-speed platforms.
As demands grow for products that execute accurately under extreme thermomechanical loads, Si two N FOUR– SiC compounds represent an essential advancement in ceramic engineering, combining toughness with functionality in a solitary, lasting platform.
In conclusion, silicon nitride– silicon carbide composite porcelains exhibit the power of materials-by-design, leveraging the strengths of two advanced ceramics to produce a hybrid system with the ability of flourishing in the most serious functional environments.
Their continued development will certainly play a central duty in advancing clean energy, aerospace, and industrial innovations in the 21st century.
