1. Intro to Oil Submersed Transformers
In the elaborate internet of our contemporary electrical grid, transformers play a vital role, silently tipping voltage backwards and forwards to make certain power can be transmitted effectively over long distances and distributed safely to our homes and markets. Amongst the various types offered, the oil immersed transformer stands as a testimony to proven integrity and longevity. For years, these workhorses have developed the backbone of power systems worldwide.
An oil submersed transformer is a kind of electrical transformer that utilizes a specific shielding oil as both a coolant and a protecting medium. This design is predominantly used for medium to high-power applications, making it a cornerstone of electric framework. This guide delves deep into the world of oil immersed power transformers and oil submersed distribution transformers, discovering their technology, applications, and their evolving duty in a period of digitalization and renewable resource.
1.1 What is an Oil Submersed Transformer?
At its core, an oil submersed transformer contains a magnetic core and copper or light weight aluminum windings housed inside a secured tank filled with insulating oil. The main feature of the oil is twofold:
1. Insulation: The oil possesses high dielectric strength, properly protecting the high-voltage windings from the transformer’s core and grounded storage tank. This protects against brief circuits and electrical malfunctions.
2. Cooling: As the transformer operates, the windings create considerable heat because of I ² R losses. The circulating oil absorbs this warm, convects it to the transformer’s storage tank walls, and dissipates it right into the surrounding air. Bigger devices typically include radiators or fins to enhance the surface area for extra efficient cooling.
This dual-purpose use of oil makes the oil immersed transformer remarkably reliable and robust, with the ability of dealing with high lots and standing up to transient overloads better than several dry-type options.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these units are oil submersed transformers, they offer unique features within the power system network. Understanding the difference is vital.
An oil submersed power transformer is a heavyweight, usually used in transmission networks at creating stations and major substations. Their key duty is to “step-up” the voltage created at the power plant to extremely high degrees (e.g., 138 kV, 230 kV, 500 kV and over) for efficient long-distance transmission, and to “step-down” the voltage at getting substations for more distribution. They are identified by their extremely high power scores (usually surpassing 100 MVA), complex building, and on-load faucet changers for voltage policy.
An oil immersed distribution transformer, on the other hand, performs the last action in the power delivery chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it to the low voltages (e.g., 400/230 V) utilized by industrial and property customers. You generally locate them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have reduced power scores (generally approximately 2,500 kVA), and are developed for optimal effectiveness at reduced, more constant tons.

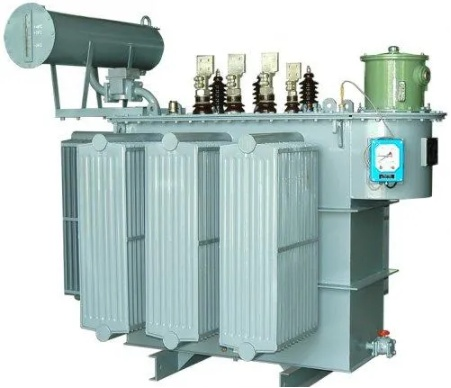

(Oil immersed power transformer)
2. Secret Advantages of Oil Submersed Transformers
The long-lasting appeal of the oil immersed transformer is not unexpected. It offers a suite of compelling benefits that make it the recommended option for lots of demanding applications.
2.1 Superior Air Conditioning and Overload Capability
The premium thermal capability of oil contrasted to air permits an oil immersed power transformer to handle and dissipate warmth far more efficiently. This equates to a greater overload capability. Throughout periods of height power demand, an oil immersed transformer can take care of temporary overloads without enduring damages, an important function for preserving grid stability. The oil’s blood circulation ensures even heat circulation, stopping localized locations that can break down insulation in time.
2.2 Boosted Insulation and Long Service Life
The mix of premium mineral oil and thoroughly impregnated paper insulation produces a dielectric system of outstanding toughness. This durable insulation system secures the transformer from voltage rises and transients, contributing to a functional lifespan that can extend to 30-40 years or more with appropriate upkeep. The secured storage tank additionally secures the interior elements from dampness, dust, and various other climatic pollutants.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil immersed transformer is commonly one of the most cost-effective option. The products utilized– mineral oil, steel container, and copper/aluminum windings– supply a beneficial balance of performance and cost. The high performance of these transformers, specifically at their rated load, results in lower energy losses over their lifetime, leading to substantial price financial savings for utility business and big industrial users.
3. Hot Topics and Future Trends
The world of oil immersed transformers is not fixed. It is constantly evolving to meet brand-new obstacles and integrate with contemporary innovations.
3.1 Naturally Degradable and Fire-Resistant Oils
Environmental and safety and security worries are driving a significant shift away from conventional mineral oil. The market is rapidly adopting oil immersed transformers full of biodegradable esters (synthetic or all-natural). These oils use a higher fire point (making them K-class fireproof), are less hazardous, and are easily naturally degradable, considerably reducing the environmental impact in instance of a leak. This pattern is making oil immersed distribution transformers safer for installment in city areas and eco sensitive places.
3.2 Integration with Smart Grids and IoT
The modern-day oil involved power transformer is coming to be a smart node in the clever grid. Sensors are being incorporated to keep an eye on vital parameters in real-time, including:
Dissolved Gas Evaluation (DGA): Finding mistake gases created within the oil to anticipate incipient mistakes.
Temperature Monitoring: Tracking top-oil and hotspot temperature levels.
Load and Power Quality Monitoring.
This data, transferred by means of IoT (Net of Points) platforms, makes it possible for anticipating maintenance, prevents unexpected interruptions, and maximizes transformer utilization and life expectancy.
3.3 Supporting the Renewable Resource Change
The global promote renewables is creating brand-new need for oil submersed transformers. Large-scale solar ranches and wind power installments call for durable oil immersed power transformers to tip up the produced voltage to transmission degrees. Additionally, the intermittent nature of renewables places higher stress and anxiety on grid elements, and the proven dependability and overload capacity of oil immersed transformers make them perfect for this important function.
4. Selection and Maintenance Best Practices
Choosing the ideal transformer and preserving it correctly is key to a trustworthy power system.
4.1 Exactly how to Select the Right Oil Immersed Transformer
Selecting between an oil immersed power transformer and an oil submersed circulation transformer relies on the application. Trick factors to consider include:
1. Voltage Degree and kVA Ranking: Suit the transformer’s specs to your system’s requirements.
2. Application: Transmission substation, plant, or commercial distribution.
3. Place: Indoor vs. exterior, ecological conditions, and fire safety and security regulations (which might affect the selection of shielding oil).
4. Performance Requirements: Comply with local effectiveness requirements like DOE (United States) or EU CoC (Europe).
5. Budget plan: Think about both the preliminary capital price and the overall price of possession, consisting of losses.
(Oil immersed distribution transformer)
4.2 Important Maintenance for Longevity
Proactive maintenance is crucial for any type of oil immersed transformer. A detailed program should consist of:
1. Normal Oil Tasting and Testing: Periodic DGA and screening of dielectric strength and dampness content are one of the most reliable ways to evaluate the health of the transformer.
2. Bushing and Insulation Examination: Aesthetic checks for splits, contamination, or leakages.
3. Faucet Changer Upkeep: Regular inspection and maintenance of on-load or off-load faucet changers.
4. Keep it Tidy and Dry: Making sure the storage tank outside, radiators, and rests are tidy and practical.
The oil immersed transformer, in its functions as both a high-capacity oil immersed power transformer and an ubiquitous oil submersed circulation transformer, stays an irreplaceable component of our international power framework. Its tried and tested style, coupled with continuous innovations in protecting fluids and electronic monitoring, ensures it will remain to be a trusted, reliable, and intelligent solution for powering our world for decades ahead. As we construct the grids of the future, incorporating more renewables and electronic knowledge, the robust and versatile oil submersed transformer will definitely go to the heart of it.
