1. Product Attributes and Structural Style
1.1 Composition and Crystalline Phases of Alumina

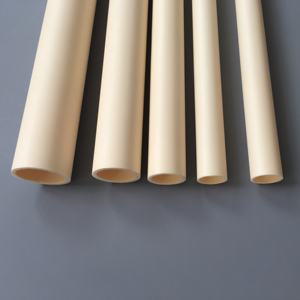

( Alumina Ceramic Tubes)
Alumina (Al ₂ O THREE) ceramic tubes are primarily fabricated from high-purity light weight aluminum oxide, with purity levels typically ranging from 90% to 99.8%, depending on the desired application.
The leading crystalline phase in completely thick, high-temperature sintered tubes is α-alumina (corundum), which shows a trigonal crystal structure and outstanding thermodynamic stability.
This stage transition from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina occurs over 1100 ° C and leads to a thick, interlacing microstructure that offers exceptional mechanical stamina and chemical resistance.
Higher pureness grades (≥ 99.5%) make the most of firmness, use resistance, and dielectric efficiency, while lower-purity formulations might incorporate secondary phases like mullite or glassy grain boundary phases to reduce price or dressmaker thermal development.
The ability to manage grain dimension, porosity, and stage structure throughout handling allows engineers to make improvements alumina tubes for specific useful needs across diverse commercial domains.
1.2 Mechanical, Thermal, and Electrical Residence
Alumina ceramic tubes exhibit an unique mix of physical residential properties that make them indispensable in demanding design atmospheres.
With a Vickers firmness surpassing 1500 HV, they are highly immune to abrasion and erosion, surpassing most metals and polymers in wear-prone systems.
Their compressive strength can reach 2000 MPa, making it possible for structural usage under high mechanical loads, while flexural toughness typically varies from 300 to 500 MPa, depending on density and surface area finish.
Thermally, alumina maintains stability as much as 1700 ° C in oxidizing atmospheres, with a low coefficient of thermal development (~ 8 ppm/K), adding to excellent thermal shock resistance when appropriately developed.
Although its thermal conductivity (~ 30 W/(m · K)) is modest contrasted to metals or aluminum nitride, it suffices for numerous high-temperature applications where electric insulation and architectural stability are prioritized.
Electrically, alumina is a superior insulator with quantity resistivity > 10 ¹⁴ Ω · cm and high dielectric stamina (> 15 kV/mm), making it suitable for electric feedthroughs, sensor housings, and high-voltage insulation.
( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Shaping and Creating Techniques
The manufacturing of alumina ceramic tubes involves innovative forming approaches tailored to accomplish accurate dimensions, wall surface thickness uniformity, and surface area high quality.
Typical methods include extrusion, isostatic pressing, and slide casting, each suited to various size varieties and efficiency requirements.
Extrusion is widely made use of for long, straight tubes with consistent cross-sections, where a plasticized alumina paste is compelled via a die and cut to length before drying and sintering.
For high-precision or thin-walled tubes, cold isostatic pushing (CIP) applies uniform stress from all instructions to compact green bodies, decreasing distortion and enhancing density homogeneity.
Slide casting, involving the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold, is ideal for complex or large-diameter geometries with variable wall thickness.
After creating, tubes go through careful drying to prevent breaking, followed by binder burnout and high-temperature sintering (1500– 1650 ° C )to achieve complete densification and dimensional stability.
2.2 Completing and Quality Assurance
Post-sintering operations such as centerless grinding, lapping, and brightening are used to accomplish limited resistances, smooth surface area finishes, and accurate internal and external sizes.
Tolerances as tight as ± 0.01 mm are achievable for essential applications in semiconductor processing or logical instrumentation.
Surface area roughness can be decreased to Ra < 0.1 µm, lessening particle capturing and enhancing compatibility with ultra-high vacuum (UHV) or cleanroom environments.
Non-destructive screening techniques– including ultrasonic examination, X-ray radiography, and dye penetrant testing– guarantee structural integrity and lack of cracks or voids.
Dimensional metrology using coordinate gauging devices (CMM) or laser scanning confirms conformity with design specifications, particularly for custom-made or high-volume manufacturing runs.
3. Useful Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Destruction
Among the most compelling benefits of alumina ceramic tubes is their capability to hold up against severe thermal and chemical problems where metals and polymers fail.
They continue to be dimensionally secure and mechanically durable in constant solution at temperature levels over 1500 ° C, making them ideal for heater liners, thermocouple protection sheaths, and glowing heating system tubes.
Their inertness to thaw metals (e.g., light weight aluminum, zinc, and non-ferrous alloys), molten salts, and many acids (except hydrofluoric and warm phosphoric acid) enables use in metallurgical and chemical handling devices.
In oxidizing and decreasing atmospheres, alumina does not break down or militarize undesirable reactions, maintaining procedure purity in semiconductor and glass production.
This chemical inertness also avoids contamination in high-purity liquid managing systems, consisting of those made use of in pharmaceutical and food handling markets.
3.2 Electrical Insulation and Plasma Resistance
In electric and plasma environments, alumina tubes work as insulating obstacles that preserve circuit stability under high voltage and elevated temperature.
They are utilized in high-intensity discharge (HID) lights, where they contain ionized gases at temperatures exceeding 1000 ° C while holding up against electrical capacities of a number of kilovolts.
In plasma etching and deposition systems, alumina tubes serve as dielectric home windows or gas circulation elements, standing up to ion barrage and thermal biking without cracking or outgassing.
Their low dielectric loss and high arc resistance avoid electrical monitoring and failure, ensuring lengthy service life in switchgear and power transmission elements.
These homes are vital in keeping process security and equipment reliability in sophisticated manufacturing and energy systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Industrial Handling Equipments
Alumina ceramic tubes are integral to a large range of industrial processes that demand resilience under extreme conditions.
In thermal processing, they function as safety sheaths for thermocouples and heating elements in kilns, heaters, and warmth therapy devices, securing delicate parts from destructive environments and mechanical wear.
In fluid handling, they move hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock enables fast home heating and cooling down cycles without failure, an essential benefit in cyclic industrial procedures.
In glass production, alumina tubes guide molten glass circulations and support forming devices, resisting erosion from viscous, high-temperature melts.
4.2 Advanced Technologies and Future Assimilation
Past typical industrial usages, alumina tubes are discovering brand-new duties in sophisticated technologies.
In semiconductor manufacture, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) activators and ion implantation systems, where fragment generation and metallic contamination need to be reduced.
In medical devices, biocompatible alumina tubes function as insulating elements in medical devices, dental implants, and diagnostic sensors.
Research study is checking out functionalized alumina tubes with embedded sensors or conductive traces for smart architectural monitoring in aerospace and energy systems.
Additive manufacturing (3D printing) of alumina is becoming a technique to create complex tube geometries with internal networks or graded structures, allowing next-generation warmth exchangers and microreactors.
As industries push towards higher performance, cleaner procedures, and greater dependability, alumina ceramic tubes remain to progress as making it possible for components in the infrastructure of modern technology.
In summary, alumina ceramic tubes represent a mature yet dynamically advancing course of crafted materials, incorporating outstanding thermal, mechanical, and electric performance in a single not natural conduit.
Their adaptability across severe atmospheres guarantees their continued significance in both established commercial systems and emerging sophisticated applications.
