1. Product Make-up and Structural Layout
1.1 Glass Chemistry and Spherical Architecture

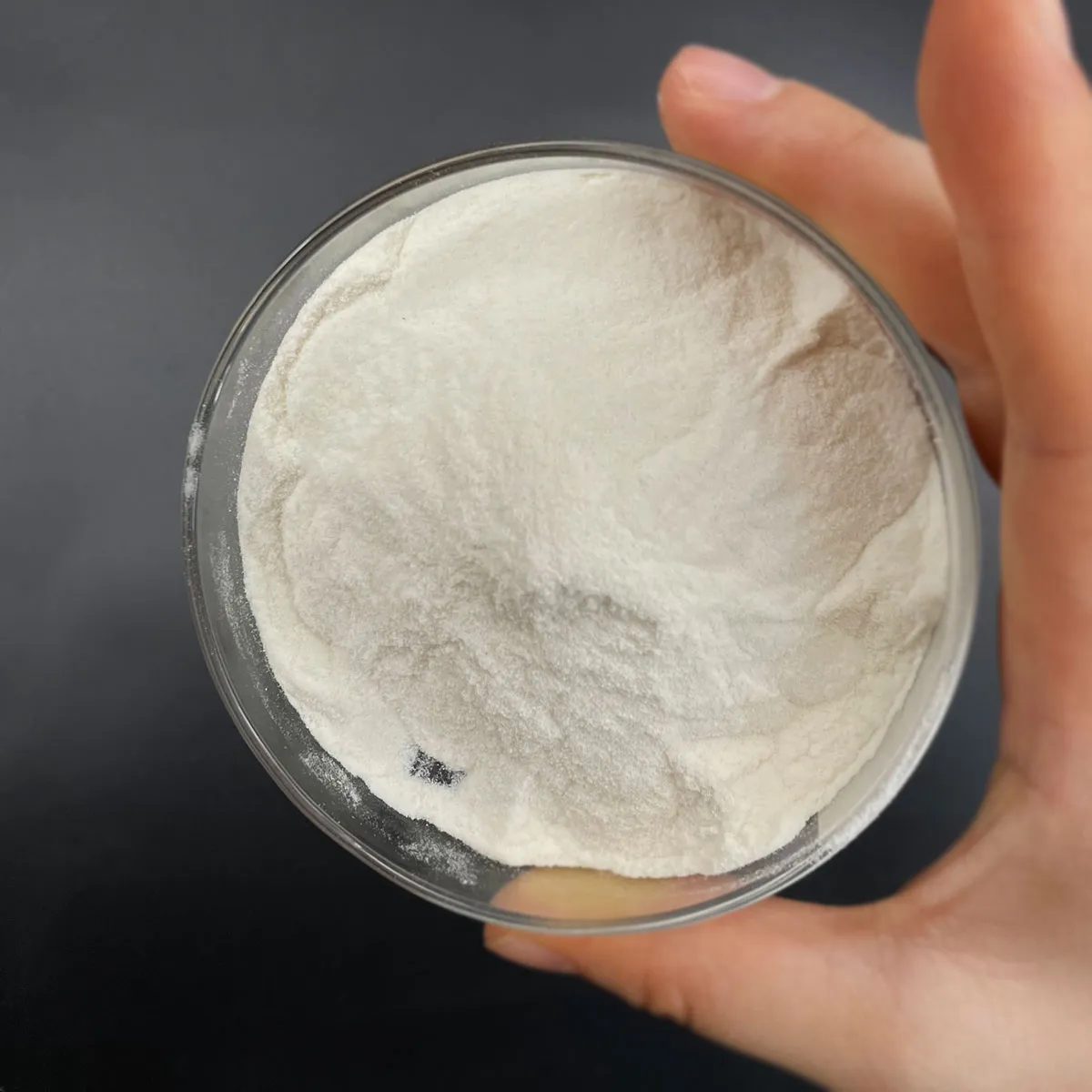

(Hollow glass microspheres)
Hollow glass microspheres (HGMs) are microscopic, round particles made up of alkali borosilicate or soda-lime glass, typically ranging from 10 to 300 micrometers in size, with wall thicknesses between 0.5 and 2 micrometers.
Their specifying attribute is a closed-cell, hollow inside that gives ultra-low thickness– commonly below 0.2 g/cm three for uncrushed balls– while maintaining a smooth, defect-free surface area essential for flowability and composite integration.
The glass composition is engineered to balance mechanical stamina, thermal resistance, and chemical sturdiness; borosilicate-based microspheres offer exceptional thermal shock resistance and reduced antacids web content, reducing sensitivity in cementitious or polymer matrices.
The hollow framework is developed via a regulated development process throughout manufacturing, where precursor glass fragments consisting of an unpredictable blowing agent (such as carbonate or sulfate substances) are heated up in a furnace.
As the glass softens, inner gas generation develops interior pressure, triggering the fragment to blow up right into an excellent sphere prior to rapid cooling strengthens the structure.
This exact control over size, wall surface thickness, and sphericity enables foreseeable efficiency in high-stress design atmospheres.
1.2 Density, Toughness, and Failure Systems
A crucial performance statistics for HGMs is the compressive strength-to-density proportion, which determines their capacity to endure processing and solution loads without fracturing.
Commercial grades are classified by their isostatic crush strength, ranging from low-strength balls (~ 3,000 psi) suitable for coatings and low-pressure molding, to high-strength variations going beyond 15,000 psi utilized in deep-sea buoyancy components and oil well cementing.
Failure usually happens using flexible twisting rather than fragile crack, a behavior controlled by thin-shell mechanics and influenced by surface area flaws, wall surface harmony, and inner stress.
As soon as fractured, the microsphere sheds its protecting and light-weight homes, stressing the requirement for mindful handling and matrix compatibility in composite layout.
Despite their fragility under factor loads, the spherical geometry disperses stress and anxiety evenly, enabling HGMs to stand up to significant hydrostatic pressure in applications such as subsea syntactic foams.
( Hollow glass microspheres)
2. Production and Quality Assurance Processes
2.1 Production Techniques and Scalability
HGMs are created industrially using fire spheroidization or rotating kiln expansion, both including high-temperature handling of raw glass powders or preformed grains.
In flame spheroidization, great glass powder is infused right into a high-temperature fire, where surface tension draws molten beads right into rounds while inner gases increase them right into hollow frameworks.
Rotary kiln techniques involve feeding forerunner grains into a turning heater, making it possible for continuous, massive manufacturing with limited control over fragment size circulation.
Post-processing steps such as sieving, air category, and surface area treatment guarantee regular fragment size and compatibility with target matrices.
Advanced manufacturing currently includes surface area functionalization with silane combining agents to boost bond to polymer resins, reducing interfacial slippage and enhancing composite mechanical properties.
2.2 Characterization and Efficiency Metrics
Quality control for HGMs depends on a suite of logical strategies to validate important parameters.
Laser diffraction and scanning electron microscopy (SEM) evaluate particle size distribution and morphology, while helium pycnometry determines real fragment density.
Crush strength is assessed utilizing hydrostatic pressure examinations or single-particle compression in nanoindentation systems.
Bulk and tapped density dimensions notify handling and blending actions, critical for industrial formulation.
Thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) evaluate thermal stability, with the majority of HGMs continuing to be stable approximately 600– 800 ° C, depending on structure.
These standardized examinations ensure batch-to-batch consistency and make it possible for reliable performance forecast in end-use applications.
3. Functional Characteristics and Multiscale Results
3.1 Density Reduction and Rheological Habits
The primary feature of HGMs is to reduce the thickness of composite products without significantly compromising mechanical integrity.
By changing strong material or steel with air-filled rounds, formulators achieve weight cost savings of 20– 50% in polymer compounds, adhesives, and concrete systems.
This lightweighting is essential in aerospace, marine, and automotive markets, where reduced mass translates to enhanced gas performance and haul capacity.
In liquid systems, HGMs influence rheology; their spherical shape reduces viscosity compared to uneven fillers, enhancing flow and moldability, though high loadings can enhance thixotropy due to fragment communications.
Correct diffusion is important to prevent jumble and make certain consistent buildings throughout the matrix.
3.2 Thermal and Acoustic Insulation Properties
The entrapped air within HGMs gives exceptional thermal insulation, with efficient thermal conductivity values as low as 0.04– 0.08 W/(m · K), depending on quantity fraction and matrix conductivity.
This makes them beneficial in insulating finishes, syntactic foams for subsea pipelines, and fireproof structure materials.
The closed-cell framework likewise hinders convective warm transfer, enhancing efficiency over open-cell foams.
In a similar way, the impedance inequality in between glass and air scatters sound waves, providing modest acoustic damping in noise-control applications such as engine units and marine hulls.
While not as reliable as committed acoustic foams, their dual duty as light-weight fillers and secondary dampers includes functional value.
4. Industrial and Arising Applications
4.1 Deep-Sea Engineering and Oil & Gas Solutions
Among the most requiring applications of HGMs is in syntactic foams for deep-ocean buoyancy modules, where they are embedded in epoxy or vinyl ester matrices to produce compounds that resist extreme hydrostatic stress.
These products maintain positive buoyancy at depths going beyond 6,000 meters, enabling self-governing underwater automobiles (AUVs), subsea sensing units, and offshore drilling devices to run without hefty flotation storage tanks.
In oil well sealing, HGMs are added to seal slurries to reduce thickness and prevent fracturing of weak formations, while likewise boosting thermal insulation in high-temperature wells.
Their chemical inertness makes sure long-term stability in saline and acidic downhole environments.
4.2 Aerospace, Automotive, and Lasting Technologies
In aerospace, HGMs are made use of in radar domes, interior panels, and satellite elements to reduce weight without compromising dimensional security.
Automotive suppliers incorporate them into body panels, underbody coatings, and battery units for electric automobiles to enhance energy efficiency and minimize emissions.
Emerging uses consist of 3D printing of light-weight frameworks, where HGM-filled resins allow complex, low-mass parts for drones and robotics.
In lasting construction, HGMs enhance the insulating residential properties of lightweight concrete and plasters, adding to energy-efficient buildings.
Recycled HGMs from hazardous waste streams are additionally being checked out to enhance the sustainability of composite materials.
Hollow glass microspheres exemplify the power of microstructural engineering to change mass material residential or commercial properties.
By integrating reduced thickness, thermal security, and processability, they enable developments across aquatic, power, transport, and ecological industries.
As product science developments, HGMs will certainly remain to play an important role in the advancement of high-performance, light-weight products for future modern technologies.
