1. Make-up and Architectural Qualities of Fused Quartz
1.1 Amorphous Network and Thermal Stability

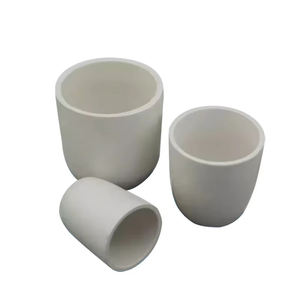

(Quartz Crucibles)
Quartz crucibles are high-temperature containers made from integrated silica, a synthetic form of silicon dioxide (SiO ₂) originated from the melting of natural quartz crystals at temperature levels exceeding 1700 ° C.
Unlike crystalline quartz, merged silica has an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which imparts outstanding thermal shock resistance and dimensional security under fast temperature level modifications.
This disordered atomic framework stops cleavage along crystallographic airplanes, making integrated silica less susceptible to breaking during thermal biking compared to polycrystalline porcelains.
The product displays a low coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), one of the most affordable amongst design materials, enabling it to endure severe thermal gradients without fracturing– a critical residential property in semiconductor and solar battery production.
Merged silica additionally keeps superb chemical inertness against many acids, molten metals, and slags, although it can be gradually engraved by hydrofluoric acid and hot phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, relying on purity and OH web content) enables sustained procedure at elevated temperatures needed for crystal development and steel refining processes.
1.2 Purity Grading and Micronutrient Control
The efficiency of quartz crucibles is very depending on chemical purity, specifically the concentration of metal contaminations such as iron, salt, potassium, light weight aluminum, and titanium.
Even trace amounts (components per million degree) of these impurities can migrate right into liquified silicon throughout crystal development, weakening the electrical properties of the resulting semiconductor material.
High-purity grades made use of in electronics making commonly have over 99.95% SiO ₂, with alkali steel oxides restricted to less than 10 ppm and change metals below 1 ppm.
Impurities stem from raw quartz feedstock or processing equipment and are reduced with cautious selection of mineral sources and filtration methods like acid leaching and flotation.
In addition, the hydroxyl (OH) web content in integrated silica affects its thermomechanical habits; high-OH kinds offer much better UV transmission but reduced thermal stability, while low-OH versions are liked for high-temperature applications due to lowered bubble formation.
( Quartz Crucibles)
2. Manufacturing Refine and Microstructural Design
2.1 Electrofusion and Developing Techniques
Quartz crucibles are mainly created using electrofusion, a process in which high-purity quartz powder is fed right into a turning graphite mold within an electrical arc heater.
An electrical arc produced between carbon electrodes melts the quartz fragments, which strengthen layer by layer to create a smooth, thick crucible form.
This method creates a fine-grained, uniform microstructure with marginal bubbles and striae, vital for uniform heat distribution and mechanical honesty.
Alternative techniques such as plasma combination and flame blend are used for specialized applications requiring ultra-low contamination or particular wall surface thickness accounts.
After casting, the crucibles undertake controlled air conditioning (annealing) to soothe inner stresses and protect against spontaneous breaking during solution.
Surface completing, consisting of grinding and brightening, makes sure dimensional accuracy and minimizes nucleation websites for undesirable condensation during use.
2.2 Crystalline Layer Engineering and Opacity Control
A specifying feature of modern-day quartz crucibles, especially those made use of in directional solidification of multicrystalline silicon, is the engineered internal layer structure.
During manufacturing, the inner surface area is usually dealt with to advertise the formation of a slim, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon very first heating.
This cristobalite layer acts as a diffusion barrier, lowering direct communication in between molten silicon and the underlying fused silica, thereby lessening oxygen and metal contamination.
Additionally, the presence of this crystalline phase boosts opacity, enhancing infrared radiation absorption and promoting even more uniform temperature level distribution within the melt.
Crucible designers carefully balance the density and connection of this layer to prevent spalling or cracking because of volume changes throughout stage shifts.
3. Practical Performance in High-Temperature Applications
3.1 Duty in Silicon Crystal Growth Processes
Quartz crucibles are important in the production of monocrystalline and multicrystalline silicon, functioning as the key container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped right into molten silicon kept in a quartz crucible and slowly pulled upward while rotating, allowing single-crystal ingots to develop.
Although the crucible does not directly contact the growing crystal, interactions between molten silicon and SiO two wall surfaces lead to oxygen dissolution right into the melt, which can impact service provider lifetime and mechanical toughness in ended up wafers.
In DS procedures for photovoltaic-grade silicon, large-scale quartz crucibles make it possible for the controlled cooling of countless kilograms of molten silicon right into block-shaped ingots.
Right here, finishes such as silicon nitride (Si five N FOUR) are applied to the inner surface area to prevent adhesion and facilitate simple launch of the strengthened silicon block after cooling.
3.2 Degradation Systems and Service Life Limitations
In spite of their robustness, quartz crucibles break down during duplicated high-temperature cycles as a result of a number of related devices.
Thick circulation or contortion occurs at extended exposure over 1400 ° C, causing wall surface thinning and loss of geometric integrity.
Re-crystallization of integrated silica right into cristobalite generates inner anxieties because of quantity expansion, possibly triggering splits or spallation that infect the thaw.
Chemical erosion emerges from reduction responses between liquified silicon and SiO ₂: SiO TWO + Si → 2SiO(g), creating unstable silicon monoxide that runs away and deteriorates the crucible wall surface.
Bubble formation, driven by trapped gases or OH teams, further endangers structural toughness and thermal conductivity.
These destruction paths restrict the number of reuse cycles and require specific procedure control to take full advantage of crucible lifespan and item return.
4. Arising Advancements and Technological Adaptations
4.1 Coatings and Compound Alterations
To improve efficiency and longevity, progressed quartz crucibles incorporate practical coverings and composite structures.
Silicon-based anti-sticking layers and drugged silica coverings boost release qualities and decrease oxygen outgassing throughout melting.
Some suppliers incorporate zirconia (ZrO ₂) particles right into the crucible wall surface to enhance mechanical strength and resistance to devitrification.
Research is ongoing into fully clear or gradient-structured crucibles created to maximize induction heat transfer in next-generation solar heating system styles.
4.2 Sustainability and Recycling Challenges
With enhancing need from the semiconductor and photovoltaic sectors, lasting use quartz crucibles has ended up being a concern.
Spent crucibles polluted with silicon residue are difficult to reuse as a result of cross-contamination threats, bring about considerable waste generation.
Efforts focus on creating recyclable crucible liners, boosted cleansing methods, and closed-loop recycling systems to recoup high-purity silica for second applications.
As device effectiveness demand ever-higher product pureness, the role of quartz crucibles will continue to develop with development in products scientific research and procedure engineering.
In summary, quartz crucibles stand for an essential user interface between basic materials and high-performance digital products.
Their special combination of pureness, thermal durability, and structural layout allows the manufacture of silicon-based innovations that power modern computer and renewable energy systems.
