1. Product Basics and Structural Properties
1.1 Crystal Chemistry and Polymorphism

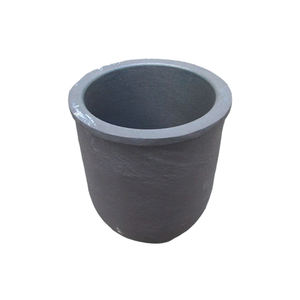

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms arranged in a tetrahedral lattice, forming one of the most thermally and chemically robust products known.
It exists in over 250 polytypic forms, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most pertinent for high-temperature applications.
The solid Si– C bonds, with bond power exceeding 300 kJ/mol, confer outstanding hardness, thermal conductivity, and resistance to thermal shock and chemical attack.
In crucible applications, sintered or reaction-bonded SiC is favored because of its capability to preserve structural integrity under severe thermal gradients and harsh liquified atmospheres.
Unlike oxide ceramics, SiC does not go through disruptive stage changes up to its sublimation factor (~ 2700 ° C), making it ideal for continual operation over 1600 ° C.
1.2 Thermal and Mechanical Performance
A specifying quality of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which advertises consistent warmth circulation and minimizes thermal stress throughout quick home heating or cooling.
This home contrasts dramatically with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are vulnerable to fracturing under thermal shock.
SiC likewise shows outstanding mechanical strength at raised temperature levels, preserving over 80% of its room-temperature flexural toughness (up to 400 MPa) also at 1400 ° C.
Its low coefficient of thermal expansion (~ 4.0 × 10 ⁻⁶/ K) better enhances resistance to thermal shock, an essential factor in repeated biking in between ambient and functional temperatures.
Furthermore, SiC shows remarkable wear and abrasion resistance, making sure long life span in settings including mechanical handling or rough thaw flow.
2. Production Approaches and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Strategies and Densification Approaches
Business SiC crucibles are largely fabricated via pressureless sintering, response bonding, or hot pressing, each offering distinctive benefits in price, purity, and performance.
Pressureless sintering includes compacting fine SiC powder with sintering help such as boron and carbon, adhered to by high-temperature therapy (2000– 2200 ° C )in inert atmosphere to accomplish near-theoretical thickness.
This method returns high-purity, high-strength crucibles ideal for semiconductor and progressed alloy processing.
Reaction-bonded SiC (RBSC) is generated by infiltrating a permeable carbon preform with molten silicon, which reacts to form β-SiC sitting, leading to a compound of SiC and recurring silicon.
While slightly reduced in thermal conductivity as a result of metallic silicon inclusions, RBSC offers excellent dimensional security and lower manufacturing cost, making it prominent for large commercial usage.
Hot-pressed SiC, though much more pricey, supplies the highest possible density and purity, reserved for ultra-demanding applications such as single-crystal growth.
2.2 Surface Top Quality and Geometric Precision
Post-sintering machining, consisting of grinding and lapping, makes certain specific dimensional resistances and smooth interior surface areas that lessen nucleation sites and decrease contamination risk.
Surface area roughness is thoroughly managed to avoid thaw attachment and facilitate easy launch of solidified products.
Crucible geometry– such as wall surface density, taper angle, and lower curvature– is optimized to balance thermal mass, architectural stamina, and compatibility with heating system heating elements.
Customized layouts suit specific melt volumes, heating accounts, and material reactivity, making certain optimum performance throughout varied commercial procedures.
Advanced quality assurance, including X-ray diffraction, scanning electron microscopy, and ultrasonic screening, validates microstructural homogeneity and lack of issues like pores or fractures.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Hostile Atmospheres
SiC crucibles display remarkable resistance to chemical strike by molten steels, slags, and non-oxidizing salts, outshining typical graphite and oxide porcelains.
They are stable in contact with molten light weight aluminum, copper, silver, and their alloys, resisting wetting and dissolution as a result of reduced interfacial power and development of protective surface area oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles protect against metallic contamination that might degrade digital properties.
Nevertheless, under extremely oxidizing problems or in the visibility of alkaline changes, SiC can oxidize to form silica (SiO TWO), which might react even more to create low-melting-point silicates.
Therefore, SiC is best matched for neutral or lowering atmospheres, where its security is made the most of.
3.2 Limitations and Compatibility Considerations
In spite of its robustness, SiC is not universally inert; it responds with specific liquified products, particularly iron-group metals (Fe, Ni, Carbon monoxide) at high temperatures through carburization and dissolution processes.
In liquified steel handling, SiC crucibles degrade quickly and are as a result stayed clear of.
In a similar way, antacids and alkaline planet steels (e.g., Li, Na, Ca) can minimize SiC, launching carbon and forming silicides, restricting their usage in battery product synthesis or responsive metal spreading.
For molten glass and porcelains, SiC is normally suitable but might introduce trace silicon into very delicate optical or digital glasses.
Comprehending these material-specific communications is crucial for choosing the proper crucible kind and ensuring procedure pureness and crucible durability.
4. Industrial Applications and Technical Evolution
4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors
SiC crucibles are crucial in the production of multicrystalline and monocrystalline silicon ingots for solar cells, where they hold up against extended direct exposure to thaw silicon at ~ 1420 ° C.
Their thermal security ensures uniform crystallization and reduces misplacement thickness, straight affecting photovoltaic or pv efficiency.
In foundries, SiC crucibles are used for melting non-ferrous steels such as aluminum and brass, providing longer life span and decreased dross formation contrasted to clay-graphite options.
They are likewise used in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of sophisticated porcelains and intermetallic compounds.
4.2 Future Trends and Advanced Product Combination
Emerging applications consist of the use of SiC crucibles in next-generation nuclear products screening and molten salt reactors, where their resistance to radiation and molten fluorides is being reviewed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O THREE) are being applied to SiC surface areas to further boost chemical inertness and stop silicon diffusion in ultra-high-purity procedures.
Additive production of SiC parts making use of binder jetting or stereolithography is under development, encouraging complex geometries and rapid prototyping for specialized crucible styles.
As need expands for energy-efficient, sturdy, and contamination-free high-temperature processing, silicon carbide crucibles will continue to be a foundation technology in sophisticated products producing.
Finally, silicon carbide crucibles stand for a crucial enabling element in high-temperature industrial and scientific processes.
Their unmatched mix of thermal stability, mechanical toughness, and chemical resistance makes them the product of option for applications where performance and reliability are critical.
