1. Product Basics and Microstructural Attributes of Alumina Ceramics
1.1 Make-up, Purity Qualities, and Crystallographic Residence

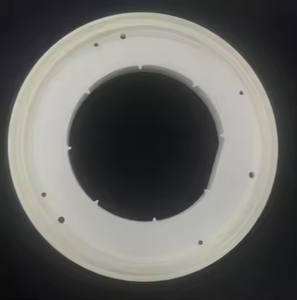

(Alumina Ceramic Wear Liners)
Alumina (Al ₂ O SIX), or aluminum oxide, is among the most commonly used technical ceramics in industrial design because of its outstanding equilibrium of mechanical stamina, chemical security, and cost-effectiveness.
When crafted into wear linings, alumina ceramics are normally fabricated with purity levels ranging from 85% to 99.9%, with higher purity corresponding to boosted firmness, wear resistance, and thermal efficiency.
The leading crystalline stage is alpha-alumina, which adopts a hexagonal close-packed (HCP) structure characterized by solid ionic and covalent bonding, contributing to its high melting point (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina ceramics include penalty, equiaxed grains whose size and circulation are controlled throughout sintering to optimize mechanical residential or commercial properties.
Grain dimensions normally range from submicron to a number of micrometers, with better grains typically enhancing fracture durability and resistance to crack proliferation under abrasive packing.
Small ingredients such as magnesium oxide (MgO) are usually presented in trace total up to prevent irregular grain development throughout high-temperature sintering, making certain uniform microstructure and dimensional security.
The resulting product shows a Vickers firmness of 1500– 2000 HV, substantially going beyond that of solidified steel (usually 600– 800 HV), making it exceptionally immune to surface area degradation in high-wear environments.
1.2 Mechanical and Thermal Performance in Industrial Issues
Alumina ceramic wear linings are selected primarily for their impressive resistance to unpleasant, erosive, and gliding wear mechanisms prevalent wholesale product dealing with systems.
They possess high compressive toughness (as much as 3000 MPa), great flexural toughness (300– 500 MPa), and superb tightness (Youthful’s modulus of ~ 380 GPa), enabling them to endure extreme mechanical loading without plastic deformation.
Although naturally fragile compared to steels, their low coefficient of rubbing and high surface firmness decrease fragment bond and reduce wear prices by orders of magnitude relative to steel or polymer-based options.
Thermally, alumina keeps structural stability up to 1600 ° C in oxidizing atmospheres, enabling use in high-temperature processing atmospheres such as kiln feed systems, central heating boiler ducting, and pyroprocessing devices.
( Alumina Ceramic Wear Liners)
Its reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) contributes to dimensional security throughout thermal biking, reducing the risk of fracturing because of thermal shock when properly mounted.
Additionally, alumina is electrically insulating and chemically inert to the majority of acids, antacid, and solvents, making it appropriate for harsh atmospheres where metallic liners would certainly degrade swiftly.
These consolidated residential or commercial properties make alumina ceramics excellent for safeguarding essential facilities in mining, power generation, cement production, and chemical handling sectors.
2. Manufacturing Processes and Design Integration Techniques
2.1 Forming, Sintering, and Quality Assurance Protocols
The manufacturing of alumina ceramic wear linings entails a series of precision production steps made to accomplish high density, marginal porosity, and consistent mechanical performance.
Raw alumina powders are refined through milling, granulation, and creating methods such as dry pressing, isostatic pushing, or extrusion, relying on the preferred geometry– tiles, plates, pipes, or custom-shaped sections.
Eco-friendly bodies are after that sintered at temperature levels in between 1500 ° C and 1700 ° C in air, promoting densification via solid-state diffusion and achieving family member thickness exceeding 95%, typically approaching 99% of theoretical thickness.
Full densification is critical, as recurring porosity functions as stress concentrators and increases wear and fracture under service problems.
Post-sintering operations might consist of diamond grinding or washing to achieve tight dimensional resistances and smooth surface finishes that lessen friction and particle capturing.
Each set undertakes extensive quality control, including X-ray diffraction (XRD) for stage analysis, scanning electron microscopy (SEM) for microstructural analysis, and solidity and bend screening to validate compliance with global standards such as ISO 6474 or ASTM B407.
2.2 Placing Techniques and System Compatibility Considerations
Reliable assimilation of alumina wear linings right into commercial devices requires cautious interest to mechanical attachment and thermal development compatibility.
Common setup techniques include adhesive bonding making use of high-strength ceramic epoxies, mechanical fastening with studs or anchors, and embedding within castable refractory matrices.
Adhesive bonding is commonly made use of for flat or delicately curved surfaces, providing consistent tension circulation and vibration damping, while stud-mounted systems permit very easy substitute and are preferred in high-impact zones.
To accommodate differential thermal expansion between alumina and metal substratums (e.g., carbon steel), crafted spaces, flexible adhesives, or compliant underlayers are included to avoid delamination or breaking during thermal transients.
Designers must additionally think about side security, as ceramic floor tiles are susceptible to breaking at revealed corners; remedies consist of beveled edges, metal shrouds, or overlapping floor tile setups.
Proper setup guarantees lengthy service life and makes best use of the protective function of the lining system.
3. Wear Systems and Performance Analysis in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Effect Loading
Alumina ceramic wear linings excel in environments dominated by three primary wear devices: two-body abrasion, three-body abrasion, and fragment disintegration.
In two-body abrasion, hard fragments or surface areas straight gouge the lining surface area, a typical occurrence in chutes, receptacles, and conveyor transitions.
Three-body abrasion involves loosened fragments caught between the liner and relocating material, causing rolling and damaging activity that slowly eliminates material.
Erosive wear happens when high-velocity bits strike the surface, especially in pneumatically-driven communicating lines and cyclone separators.
As a result of its high hardness and low crack strength, alumina is most efficient in low-impact, high-abrasion situations.
It does extremely well versus siliceous ores, coal, fly ash, and concrete clinker, where wear rates can be lowered by 10– 50 times compared to moderate steel linings.
Nonetheless, in applications including repeated high-energy effect, such as primary crusher chambers, crossbreed systems combining alumina ceramic tiles with elastomeric supports or metal guards are often utilized to absorb shock and protect against crack.
3.2 Area Testing, Life Process Evaluation, and Failing Mode Assessment
Efficiency assessment of alumina wear liners involves both lab screening and field surveillance.
Standardized examinations such as the ASTM G65 completely dry sand rubber wheel abrasion examination give relative wear indices, while customized slurry disintegration rigs simulate site-specific problems.
In commercial setups, put on rate is generally determined in mm/year or g/kWh, with service life projections based upon initial density and observed deterioration.
Failure settings include surface sprucing up, micro-cracking, spalling at sides, and total floor tile dislodgement because of adhesive degradation or mechanical overload.
Root cause evaluation frequently discloses setup errors, inappropriate grade selection, or unexpected impact tons as primary factors to early failing.
Life cycle expense evaluation regularly demonstrates that regardless of higher preliminary costs, alumina liners use remarkable complete expense of ownership as a result of prolonged replacement periods, lowered downtime, and lower maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Executions Throughout Heavy Industries
Alumina ceramic wear liners are released across a broad range of industrial markets where material deterioration positions operational and economic challenges.
In mining and mineral processing, they shield transfer chutes, mill liners, hydrocyclones, and slurry pumps from unpleasant slurries having quartz, hematite, and various other hard minerals.
In nuclear power plant, alumina tiles line coal pulverizer ducts, boiler ash hoppers, and electrostatic precipitator elements subjected to fly ash disintegration.
Concrete producers make use of alumina linings in raw mills, kiln inlet zones, and clinker conveyors to combat the extremely abrasive nature of cementitious products.
The steel industry employs them in blast furnace feed systems and ladle shrouds, where resistance to both abrasion and moderate thermal tons is necessary.
Even in less traditional applications such as waste-to-energy plants and biomass handling systems, alumina porcelains provide resilient defense versus chemically aggressive and fibrous products.
4.2 Emerging Fads: Compound Solutions, Smart Liners, and Sustainability
Present research focuses on improving the toughness and performance of alumina wear systems with composite layout.
Alumina-zirconia (Al ₂ O SIX-ZrO TWO) composites utilize transformation toughening from zirconia to enhance split resistance, while alumina-titanium carbide (Al ₂ O FOUR-TiC) qualities use enhanced performance in high-temperature moving wear.
An additional advancement includes installing sensors within or underneath ceramic liners to check wear development, temperature, and impact frequency– enabling predictive upkeep and digital double integration.
From a sustainability perspective, the extensive life span of alumina linings minimizes product usage and waste generation, lining up with circular economy concepts in industrial operations.
Recycling of invested ceramic linings into refractory accumulations or building and construction products is also being checked out to lessen ecological impact.
To conclude, alumina ceramic wear linings stand for a foundation of contemporary commercial wear security innovation.
Their extraordinary hardness, thermal security, and chemical inertness, integrated with mature manufacturing and installation methods, make them indispensable in combating product destruction throughout heavy markets.
As product science advancements and digital tracking comes to be much more integrated, the next generation of wise, durable alumina-based systems will further enhance functional efficiency and sustainability in rough atmospheres.
