1. Essential Chemistry and Crystallographic Design of Boron Carbide
1.1 Molecular Make-up and Architectural Intricacy

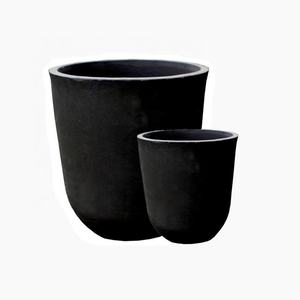

(Boron Carbide Ceramic)
Boron carbide (B FOUR C) stands as one of the most interesting and highly essential ceramic products because of its special combination of severe hardness, low density, and phenomenal neutron absorption ability.
Chemically, it is a non-stoichiometric substance mostly composed of boron and carbon atoms, with an idyllic formula of B FOUR C, though its real composition can range from B FOUR C to B ₁₀. ₅ C, showing a vast homogeneity variety regulated by the substitution mechanisms within its complex crystal latticework.
The crystal framework of boron carbide comes from the rhombohedral system (room group R3̄m), identified by a three-dimensional network of 12-atom icosahedra– clusters of boron atoms– connected by direct C-B-C or C-C chains along the trigonal axis.
These icosahedra, each containing 11 boron atoms and 1 carbon atom (B ₁₁ C), are covalently adhered via exceptionally solid B– B, B– C, and C– C bonds, contributing to its amazing mechanical rigidity and thermal security.
The visibility of these polyhedral systems and interstitial chains introduces architectural anisotropy and innate problems, which influence both the mechanical behavior and digital residential or commercial properties of the material.
Unlike simpler ceramics such as alumina or silicon carbide, boron carbide’s atomic architecture permits considerable configurational adaptability, enabling defect formation and fee distribution that impact its performance under anxiety and irradiation.
1.2 Physical and Digital Residences Developing from Atomic Bonding
The covalent bonding network in boron carbide leads to among the highest recognized firmness worths amongst synthetic products– second only to diamond and cubic boron nitride– generally ranging from 30 to 38 Grade point average on the Vickers firmness range.
Its density is incredibly low (~ 2.52 g/cm THREE), making it approximately 30% lighter than alumina and nearly 70% lighter than steel, an essential advantage in weight-sensitive applications such as personal armor and aerospace elements.
Boron carbide exhibits exceptional chemical inertness, withstanding attack by the majority of acids and alkalis at space temperature level, although it can oxidize above 450 ° C in air, creating boric oxide (B ₂ O TWO) and carbon dioxide, which may jeopardize structural stability in high-temperature oxidative settings.
It possesses a broad bandgap (~ 2.1 eV), identifying it as a semiconductor with prospective applications in high-temperature electronics and radiation detectors.
Furthermore, its high Seebeck coefficient and reduced thermal conductivity make it a candidate for thermoelectric energy conversion, specifically in severe settings where conventional products fail.
(Boron Carbide Ceramic)
The material additionally demonstrates remarkable neutron absorption as a result of the high neutron capture cross-section of the ¹⁰ B isotope (about 3837 barns for thermal neutrons), rendering it indispensable in atomic power plant control poles, protecting, and spent gas storage space systems.
2. Synthesis, Processing, and Difficulties in Densification
2.1 Industrial Production and Powder Fabrication Strategies
Boron carbide is primarily generated via high-temperature carbothermal decrease of boric acid (H FOUR BO FIVE) or boron oxide (B ₂ O FIVE) with carbon resources such as petroleum coke or charcoal in electrical arc furnaces running above 2000 ° C.
The response continues as: 2B ₂ O FIVE + 7C → B FOUR C + 6CO, yielding coarse, angular powders that call for substantial milling to achieve submicron particle sizes suitable for ceramic processing.
Different synthesis routes include self-propagating high-temperature synthesis (SHS), laser-induced chemical vapor deposition (CVD), and plasma-assisted methods, which provide better control over stoichiometry and bit morphology but are much less scalable for commercial usage.
Because of its extreme hardness, grinding boron carbide into fine powders is energy-intensive and prone to contamination from milling media, requiring making use of boron carbide-lined mills or polymeric grinding help to preserve pureness.
The resulting powders have to be meticulously identified and deagglomerated to make certain uniform packaging and effective sintering.
2.2 Sintering Limitations and Advanced Debt Consolidation Techniques
A significant challenge in boron carbide ceramic construction is its covalent bonding nature and low self-diffusion coefficient, which badly limit densification during traditional pressureless sintering.
Even at temperature levels approaching 2200 ° C, pressureless sintering normally generates porcelains with 80– 90% of academic density, leaving recurring porosity that degrades mechanical strength and ballistic performance.
To overcome this, advanced densification techniques such as hot pressing (HP) and hot isostatic pushing (HIP) are employed.
Hot pressing uses uniaxial pressure (usually 30– 50 MPa) at temperatures between 2100 ° C and 2300 ° C, promoting particle rearrangement and plastic deformation, enabling densities going beyond 95%.
HIP even more boosts densification by using isostatic gas pressure (100– 200 MPa) after encapsulation, eliminating closed pores and attaining near-full thickness with enhanced fracture toughness.
Additives such as carbon, silicon, or shift metal borides (e.g., TiB TWO, CrB TWO) are occasionally presented in small quantities to boost sinterability and prevent grain growth, though they may somewhat reduce solidity or neutron absorption efficiency.
Despite these breakthroughs, grain limit weakness and inherent brittleness remain consistent challenges, particularly under vibrant loading conditions.
3. Mechanical Actions and Performance Under Extreme Loading Conditions
3.1 Ballistic Resistance and Failing Devices
Boron carbide is commonly acknowledged as a premier product for light-weight ballistic security in body armor, car plating, and aircraft shielding.
Its high solidity allows it to effectively erode and deform inbound projectiles such as armor-piercing bullets and fragments, dissipating kinetic power through systems consisting of crack, microcracking, and localized stage change.
Nonetheless, boron carbide displays a phenomenon called “amorphization under shock,” where, under high-velocity effect (typically > 1.8 km/s), the crystalline structure collapses into a disordered, amorphous phase that does not have load-bearing capability, causing tragic failing.
This pressure-induced amorphization, observed through in-situ X-ray diffraction and TEM researches, is attributed to the breakdown of icosahedral devices and C-B-C chains under extreme shear tension.
Initiatives to minimize this include grain refinement, composite design (e.g., B ₄ C-SiC), and surface finishing with pliable metals to postpone fracture breeding and consist of fragmentation.
3.2 Use Resistance and Commercial Applications
Past defense, boron carbide’s abrasion resistance makes it ideal for commercial applications involving serious wear, such as sandblasting nozzles, water jet cutting tips, and grinding media.
Its hardness substantially exceeds that of tungsten carbide and alumina, leading to extensive service life and reduced maintenance prices in high-throughput production environments.
Components made from boron carbide can run under high-pressure unpleasant circulations without rapid destruction, although care must be required to prevent thermal shock and tensile stress and anxieties throughout operation.
Its use in nuclear settings likewise reaches wear-resistant parts in fuel handling systems, where mechanical longevity and neutron absorption are both called for.
4. Strategic Applications in Nuclear, Aerospace, and Emerging Technologies
4.1 Neutron Absorption and Radiation Shielding Solutions
One of the most important non-military applications of boron carbide remains in atomic energy, where it functions as a neutron-absorbing material in control poles, shutdown pellets, and radiation shielding structures.
Because of the high wealth of the ¹⁰ B isotope (normally ~ 20%, but can be enhanced to > 90%), boron carbide efficiently captures thermal neutrons by means of the ¹⁰ B(n, α)⁷ Li reaction, generating alpha particles and lithium ions that are conveniently consisted of within the material.
This response is non-radioactive and produces marginal long-lived by-products, making boron carbide safer and much more steady than alternatives like cadmium or hafnium.
It is used in pressurized water reactors (PWRs), boiling water reactors (BWRs), and research study reactors, typically in the form of sintered pellets, clad tubes, or composite panels.
Its stability under neutron irradiation and capacity to keep fission products improve reactor security and operational long life.
4.2 Aerospace, Thermoelectrics, and Future Product Frontiers
In aerospace, boron carbide is being checked out for use in hypersonic automobile leading edges, where its high melting point (~ 2450 ° C), reduced thickness, and thermal shock resistance offer benefits over metal alloys.
Its possibility in thermoelectric tools stems from its high Seebeck coefficient and reduced thermal conductivity, allowing straight conversion of waste heat right into electrical power in severe atmospheres such as deep-space probes or nuclear-powered systems.
Research is likewise underway to establish boron carbide-based compounds with carbon nanotubes or graphene to boost durability and electrical conductivity for multifunctional architectural electronics.
Additionally, its semiconductor buildings are being leveraged in radiation-hardened sensors and detectors for area and nuclear applications.
In recap, boron carbide ceramics represent a cornerstone material at the junction of extreme mechanical performance, nuclear engineering, and progressed production.
Its one-of-a-kind mix of ultra-high hardness, reduced density, and neutron absorption capacity makes it irreplaceable in protection and nuclear modern technologies, while recurring research study remains to increase its utility into aerospace, energy conversion, and next-generation compounds.
As refining methods enhance and new composite styles arise, boron carbide will continue to be at the center of materials advancement for the most requiring technical difficulties.
