1. Product Basics and Structural Properties of Alumina Ceramics
1.1 Make-up, Crystallography, and Stage Stability

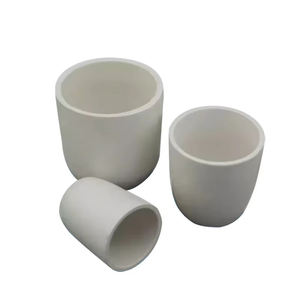

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels fabricated mainly from light weight aluminum oxide (Al ₂ O THREE), among the most commonly used advanced porcelains due to its remarkable mix of thermal, mechanical, and chemical stability.
The dominant crystalline phase in these crucibles is alpha-alumina (α-Al two O SIX), which belongs to the diamond structure– a hexagonal close-packed setup of oxygen ions with two-thirds of the octahedral interstices occupied by trivalent light weight aluminum ions.
This dense atomic packaging leads to strong ionic and covalent bonding, conferring high melting factor (2072 ° C), superb hardness (9 on the Mohs scale), and resistance to creep and contortion at raised temperatures.
While pure alumina is optimal for the majority of applications, trace dopants such as magnesium oxide (MgO) are often added during sintering to prevent grain growth and boost microstructural harmony, consequently improving mechanical stamina and thermal shock resistance.
The phase purity of α-Al ₂ O three is critical; transitional alumina stages (e.g., γ, δ, θ) that develop at reduced temperatures are metastable and undertake quantity modifications upon conversion to alpha phase, potentially leading to fracturing or failure under thermal cycling.
1.2 Microstructure and Porosity Control in Crucible Fabrication
The performance of an alumina crucible is greatly influenced by its microstructure, which is established throughout powder processing, forming, and sintering phases.
High-purity alumina powders (generally 99.5% to 99.99% Al Two O FIVE) are formed into crucible types using techniques such as uniaxial pressing, isostatic pushing, or slip casting, adhered to by sintering at temperature levels between 1500 ° C and 1700 ° C.
During sintering, diffusion systems drive particle coalescence, lowering porosity and increasing thickness– preferably attaining > 99% academic density to decrease permeability and chemical infiltration.
Fine-grained microstructures improve mechanical toughness and resistance to thermal anxiety, while controlled porosity (in some specialized grades) can enhance thermal shock resistance by dissipating strain energy.
Surface surface is additionally crucial: a smooth interior surface minimizes nucleation sites for undesirable reactions and promotes very easy removal of solidified materials after handling.
Crucible geometry– including wall surface thickness, curvature, and base layout– is maximized to stabilize warm transfer efficiency, architectural integrity, and resistance to thermal gradients during fast heating or cooling.
( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Efficiency and Thermal Shock Actions
Alumina crucibles are routinely used in atmospheres exceeding 1600 ° C, making them crucial in high-temperature materials study, metal refining, and crystal growth procedures.
They exhibit reduced thermal conductivity (~ 30 W/m · K), which, while restricting heat transfer rates, likewise gives a degree of thermal insulation and assists keep temperature level gradients essential for directional solidification or zone melting.
An essential challenge is thermal shock resistance– the ability to stand up to sudden temperature changes without cracking.
Although alumina has a fairly reduced coefficient of thermal expansion (~ 8 × 10 ⁻⁶/ K), its high stiffness and brittleness make it vulnerable to fracture when subjected to steep thermal gradients, especially throughout fast heating or quenching.
To minimize this, users are advised to adhere to regulated ramping procedures, preheat crucibles gradually, and stay clear of straight exposure to open flames or chilly surfaces.
Advanced qualities include zirconia (ZrO ₂) strengthening or rated compositions to enhance fracture resistance via mechanisms such as stage makeover toughening or recurring compressive stress and anxiety generation.
2.2 Chemical Inertness and Compatibility with Responsive Melts
Among the defining advantages of alumina crucibles is their chemical inertness toward a wide variety of liquified steels, oxides, and salts.
They are highly immune to fundamental slags, molten glasses, and lots of metal alloys, including iron, nickel, cobalt, and their oxides, that makes them appropriate for use in metallurgical analysis, thermogravimetric experiments, and ceramic sintering.
However, they are not globally inert: alumina responds with highly acidic changes such as phosphoric acid or boron trioxide at high temperatures, and it can be corroded by molten antacid like sodium hydroxide or potassium carbonate.
Particularly crucial is their interaction with light weight aluminum steel and aluminum-rich alloys, which can decrease Al ₂ O two using the reaction: 2Al + Al ₂ O ₃ → 3Al ₂ O (suboxide), causing matching and ultimate failing.
Likewise, titanium, zirconium, and rare-earth steels display high reactivity with alumina, developing aluminides or intricate oxides that compromise crucible stability and pollute the thaw.
For such applications, alternate crucible products like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are favored.
3. Applications in Scientific Research and Industrial Processing
3.1 Duty in Materials Synthesis and Crystal Growth
Alumina crucibles are main to many high-temperature synthesis paths, including solid-state responses, change development, and thaw processing of practical ceramics and intermetallics.
In solid-state chemistry, they work as inert containers for calcining powders, manufacturing phosphors, or preparing precursor products for lithium-ion battery cathodes.
For crystal growth strategies such as the Czochralski or Bridgman approaches, alumina crucibles are used to have molten oxides like yttrium aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high purity makes sure marginal contamination of the expanding crystal, while their dimensional stability sustains reproducible development problems over expanded durations.
In change growth, where single crystals are grown from a high-temperature solvent, alumina crucibles need to withstand dissolution by the flux tool– frequently borates or molybdates– requiring mindful option of crucible grade and handling specifications.
3.2 Use in Analytical Chemistry and Industrial Melting Workflow
In analytical labs, alumina crucibles are standard equipment in thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC), where exact mass dimensions are made under controlled environments and temperature ramps.
Their non-magnetic nature, high thermal stability, and compatibility with inert and oxidizing settings make them excellent for such precision measurements.
In commercial setups, alumina crucibles are employed in induction and resistance heaters for melting rare-earth elements, alloying, and casting operations, particularly in precious jewelry, oral, and aerospace component production.
They are additionally made use of in the manufacturing of technological porcelains, where raw powders are sintered or hot-pressed within alumina setters and crucibles to stop contamination and ensure consistent home heating.
4. Limitations, Handling Practices, and Future Material Enhancements
4.1 Functional Constraints and Finest Practices for Durability
In spite of their toughness, alumina crucibles have well-defined operational limits that should be respected to guarantee safety and performance.
Thermal shock stays one of the most common cause of failure; as a result, gradual home heating and cooling down cycles are crucial, especially when transitioning via the 400– 600 ° C array where recurring stresses can accumulate.
Mechanical damages from mishandling, thermal cycling, or call with tough materials can initiate microcracks that circulate under anxiety.
Cleansing ought to be done very carefully– avoiding thermal quenching or rough techniques– and utilized crucibles must be examined for indicators of spalling, staining, or deformation before reuse.
Cross-contamination is one more issue: crucibles made use of for reactive or toxic materials must not be repurposed for high-purity synthesis without comprehensive cleaning or must be thrown out.
4.2 Arising Patterns in Composite and Coated Alumina Systems
To prolong the capacities of traditional alumina crucibles, researchers are establishing composite and functionally rated materials.
Instances consist of alumina-zirconia (Al two O THREE-ZrO ₂) compounds that enhance toughness and thermal shock resistance, or alumina-silicon carbide (Al ₂ O SIX-SiC) versions that enhance thermal conductivity for even more uniform heating.
Surface layers with rare-earth oxides (e.g., yttria or scandia) are being discovered to develop a diffusion obstacle versus reactive metals, thus increasing the range of suitable melts.
Additionally, additive production of alumina elements is emerging, enabling custom-made crucible geometries with interior networks for temperature monitoring or gas circulation, opening up brand-new possibilities in process control and activator layout.
To conclude, alumina crucibles remain a cornerstone of high-temperature modern technology, valued for their dependability, purity, and adaptability across scientific and industrial domain names.
Their continued development with microstructural design and hybrid product style ensures that they will remain essential devices in the innovation of materials science, energy innovations, and progressed manufacturing.
